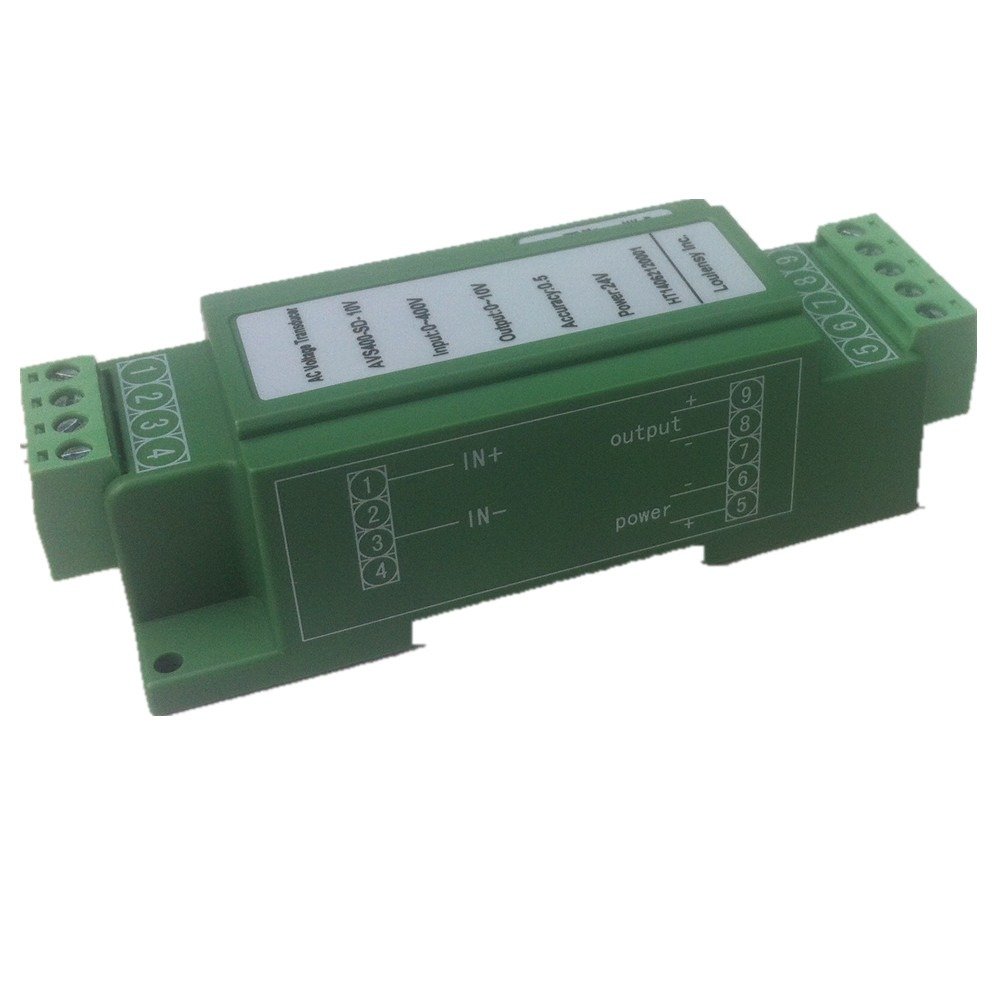

0-500V AC to 0-10V DC Voltage Transducer Sensor - Precision Voltage Transmitter for Industrial Automation, Solar Power & HVAC Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:15739643
Product Description
About this item Input:0-500V AC Power Consumption: less than 0.3 VA Working Stability: annual change < 0.2% Impulse Voltage:5KV(peak value),1.2/50uS Load Capacity: 2 times current continuous Storage Environment:-40 to +70 degress Centigrade,20%-95% without condensation Isolation Withstanding Voltage:AC 2.0KV/min*1mA between input/output/power Output:0-10V DC Power Supply(defaulted):24V DC +/-15% (If 15V or 12V needed,please leave a message) Dimension:95*37*32mm(L*W*H) Accuracy:0.5% F.S Feature:Voltage Terminal Insert,standard din rail(35mm)mounting or pannel mounting Working Environment:-10 to 50 degrees Centigrade,20%-90% without condensation Isolation Resistance:20M Ohm(DC500V) or above Capacity Max:0-500V AC (Customerized,contact operator if you need other input ranges,e.g.0-75mV or 0-300V) Show more › See more product details
Product Features
Input0-500V AC
Power Consumption less than 0.3 VA
Working Stability annual change < 0.2%
Impulse Voltage5KV(peak value),1.2/50uS
Load Capacity 2 times current continuous
Storage Environment-40 to +70 degress Centigrade,20%-95% without condensation
Isolation Withstanding VoltageAC 2.0KV/min*1mA between input/output/power
Output0-10V DC
Power Supply(defaulted)24V DC +/-15% (If 15V or 12V needed,please leave a message)
Dimension95*37*32mm(L*W*H)
Accuracy0.5% F.S
FeatureVoltage Terminal Insert,standard din rail(35mm)mounting or pannel mounting
Working Environment-10 to 50 degrees Centigrade,20%-90% without condensation
Isolation Resistance20M Ohm(DC500V) or above
Capacity Max0-500V AC (Customerized,contact operator if you need other input ranges,e.g.0-75mV or 0-300V)
