Professional LCR Meter - Digital Capacitance Tester & Inductance Resistance Bridge for Electronics, DIY, and Industrial Use | Perfect for Circuit Testing, Component Analysis, and Quality Control

Product Description

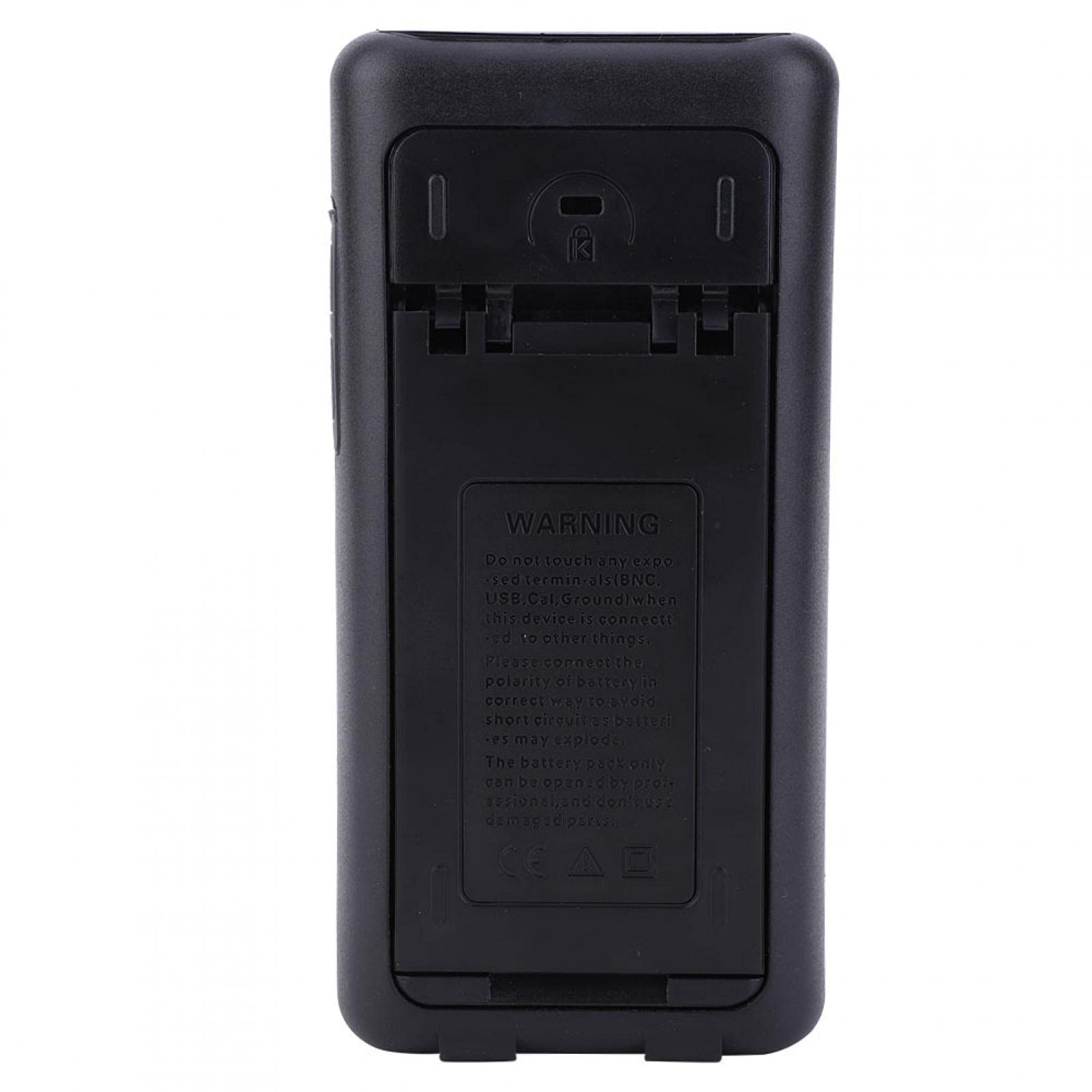

Feature:1. Used to measure inductance, capacitance, resistance, etc., can meet the requirements of desktop applications, can also be used for handheld measurement.2. 2.8in TFT LCD display for clear measurement and English and Chinese display switched for different needs.3. Support data record analysis and PC upper computer, easy remote control and measurement.4. Double shock proof cover for all around protection, shock proof and fall proof.5. The back of the product is provided with a stable bracket for measuring and easy placement.Spec: Condition: 100% Brand NewItem Type: BridgeMaterial: ABSBattery: 3.7V/ 18650 2 x Li Battery (not included) Specification: Model hantek1832C Measurement Frequency 100Hz, 120Hz, 400Hz, 1kHz, 4kH z,10kHz, 40kHz Accuracy 0.30% Equivalent Circuit Series, parallel Test Level 0.6Vrms Measurement Method Manual, automatic Screen 2.8in TFT LCD Measured Parameters Main Parameter: L / C / R / Z Deputy parameters: X / D / Q /θ/ ESR The principle of parameter L / C / R / Z Deputy parameters X / D / Q /θ/ ESR Measurement Range (Rise) 0 2000H Measurement Range (C)0 20mF Measurement Range (R)0 20MΩ Measurement Speed High Speed (4times/s),Middle Speed (2 times/s),Low Speed (1/s) Reset Function Open circuit calibration, short circuit calibration Test side configuration 3, 5 Capacitance C and dissipation D 100Hz / 120Hz Range Display Range Accuracy Ce Accuracy 20mF 4.000mF ~20.000mF 8.00%+ 5bit 0.08 4mF 400.0μF ~3.9999mF 2.00%+ 3bit 0.02 400μF 40.00μF ~399.99μF 0.60%+ 2bit 0.006 40μF 4.000μF ~39.999μF 0
