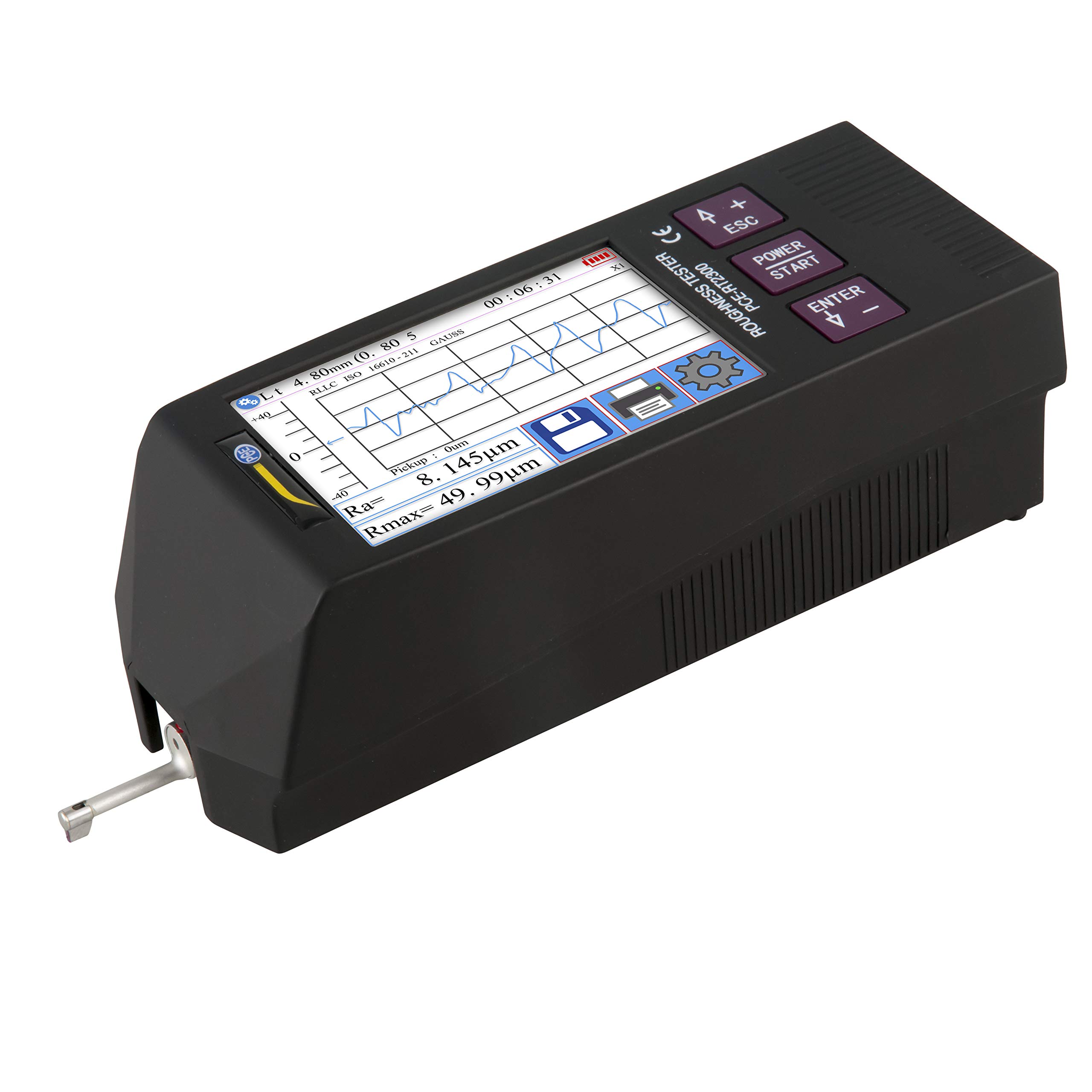

PCE-RT 2300 Digital Surface Roughness Tester | Portable Material Texture Analyzer | for Metal, Plastic & Wood Testing | Workshop & Quality Control Use

Product Description

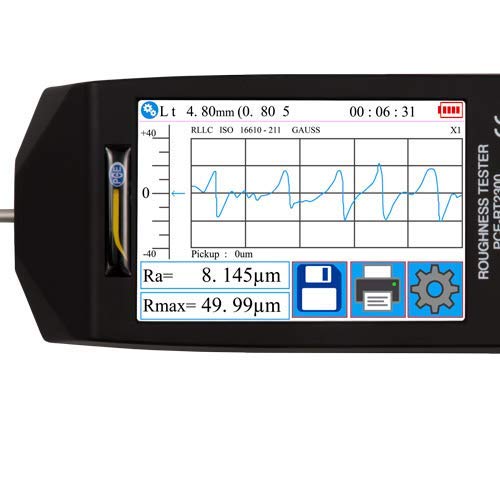

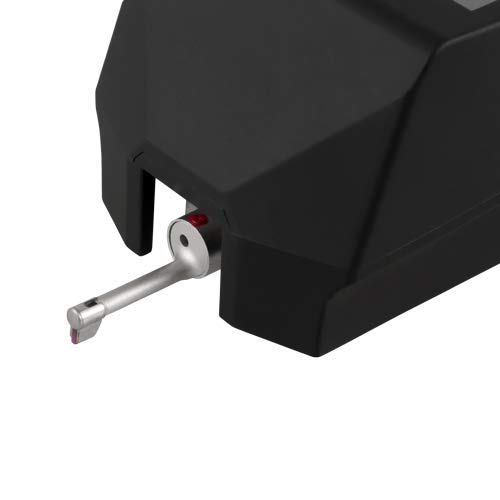

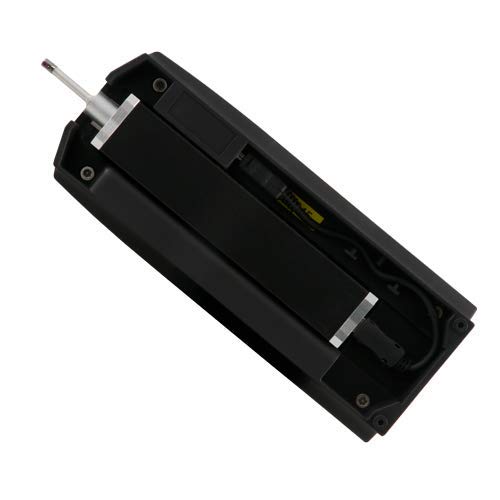

Description Masuring range: 320 μm Accuracy: ± 10% Repeatability: ± 7% Resolution ± 20 μm: 0.01 μm ± 40 μm: 0.02 μm ± 80 μm: 0.04 μm Measurement Parameters: Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2 Measurement Standards: ISO4287, ANSI b46.1, DIN4768, JISb601 Graphic: Primary profile (roughness + waviness), Roughness profile (roughness), Loading curves Measuring filter: RC, PC-RC, Gaus, DP Measuring section (Cut Off): 0.25 mm, 0.8 mm, 2.5 mm Measuring length: 1 ... 5* measuring path, Max. 17.5 mm (including pre- and post-run) Sensor: Diamond probe tip 90°, 5 μm Contact force sensor: <4 mN Feed rate 0.25 mm: 0.135 mm / s 0.8 mm: 0.5 mm / s 2.5 mm: 1 mm / s Display: 3.5" LCD screen Power supply: 3.7V Li-Ion Battery, 5V / 800-mA USB Power Adapter Operating time: 50 h Operating conditions: -20 ... 40°C / -4 ... 104°F, max. 90% rh Storage conditions: -40 ... 60°C / -40 ... 140°F, max. 90% rh Dimensions Main unit: 158 x 55 x 52 mm / 6.2 x 2.2 x 2 in Motor unit: 115 x 23 x 27 mm / 4.5 x 1 x 1.1 in Weight: About 500 g / 1.1 lbs Delivery Scope 1 x Roughness tester PCE-RT 2300 1 x Microprobe 1 x Removable motorized sensor 2 x Connection cable for motor unit 1 x Charger 1 x Interface cable 1 x Transport case 1 x Manual
