Product Description

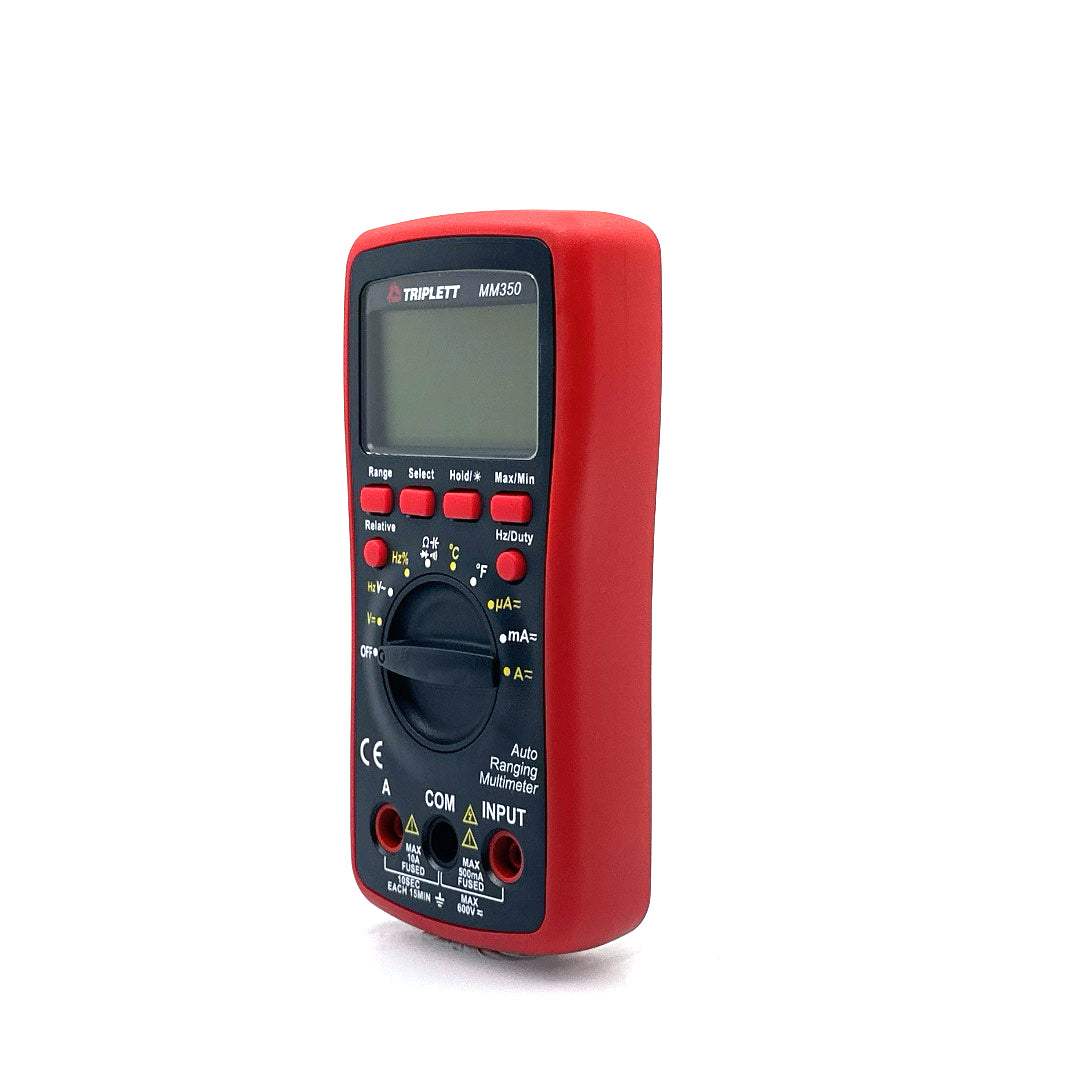

The Triplett Model MM350 True RMS Auto-Ranging Digital Multimeter measures AC/DC Voltage and Current, AC/DC µA Current, Resistance, Temperature, Capacitance, Frequency, Diode, and Continuity.
DESCRIPTION
The Triplett Model MM350 True RMS Auto-Ranging Digital Multimeter measures AC/DC Voltage and Current, AC/DC µA Current, Resistance, Temperature, Capacitance, Frequency, Diode, and Continuity. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. It features a 4000 count backlit LCD display, Data Hold, Relative mode, Min/Max, Auto power off, and Low battery indicator. With a CAT III 600V safety rating, the MM350 is well suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe and (3) AAA batteries. 1-year warranty.
MM350-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY:
Features
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Measures AC/DC Voltage and Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity
- µA Current measurement
- Data Hold and Relative mode
- Min/Max
- Auto power off
- Low battery indicator
- Includes test leads, temperature probe and (3) AAA batteries
- CAT III 600V safety category
- 1-year warranty
Specification
| | MM350 |
| Display counts | 4000 count |
| Basic Accuracy | ±0.8% |
| AC/DC Voltage | 600V |
| AC/DC Current | 10A |
| AC/DC µA Current | 400µA |
| Resistance | 40MΩ |
| Temperature | -40 to 2000°F (-40 to 1370°C) |
| Capacitance | 2mF |
| Frequency | 5MHz |
| Duty Cycle | 0.1 to 99.9% |
| Continuity | <30Ω |
| Power | (3) AAA batteries |
| Safety Category | CAT III-600V |
| Dimensions | 5.7 x 2.8 x 1.4" (145 x 70 x 35mm) |
| Weight | 5.5oz. (157g) |
