AT5108 8-Channel Multi-Channel Resistance Tester - Professional Electrical Testing Equipment for Circuit Boards, Electronics, and Industrial Applications

Product Description

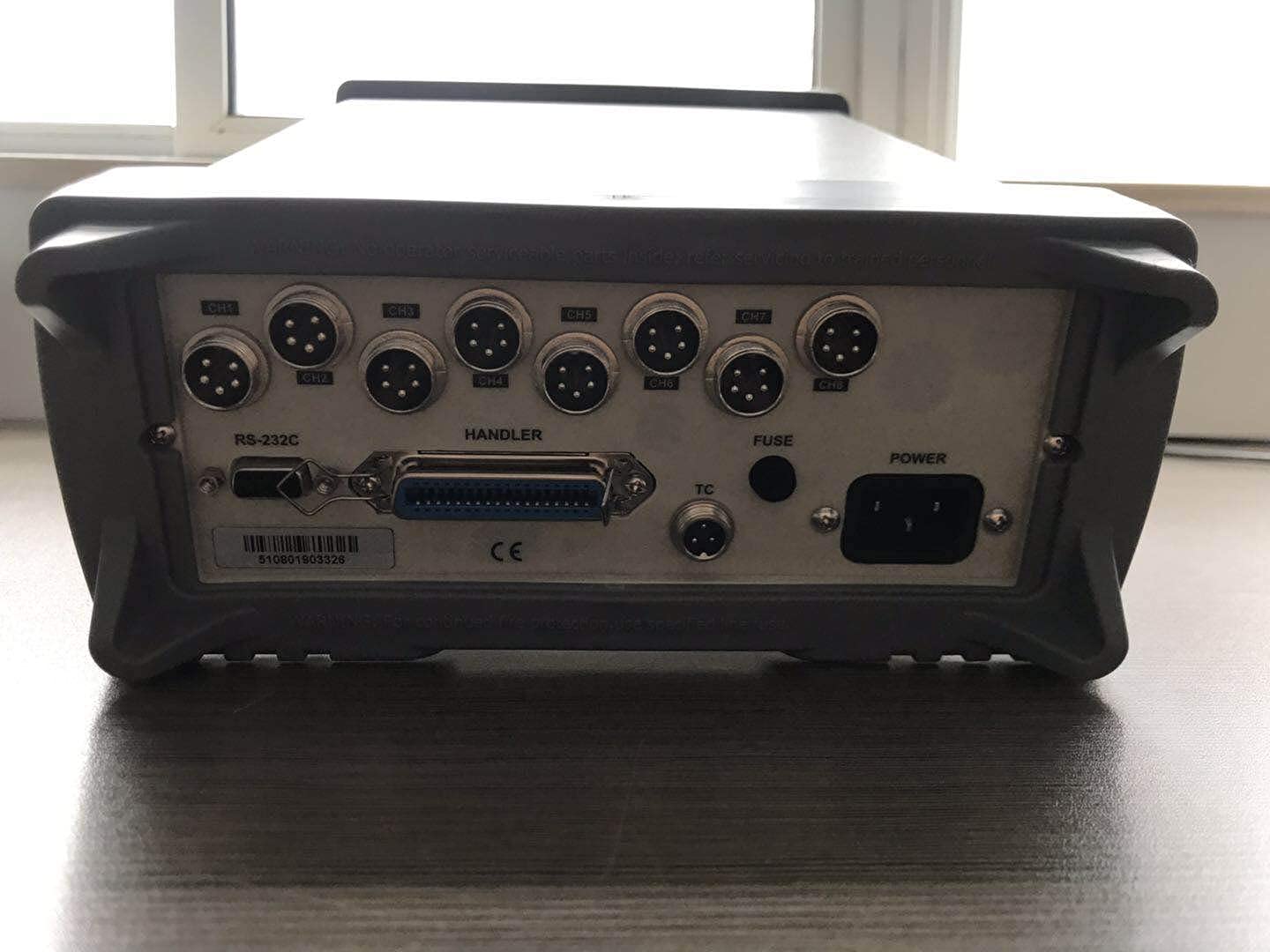

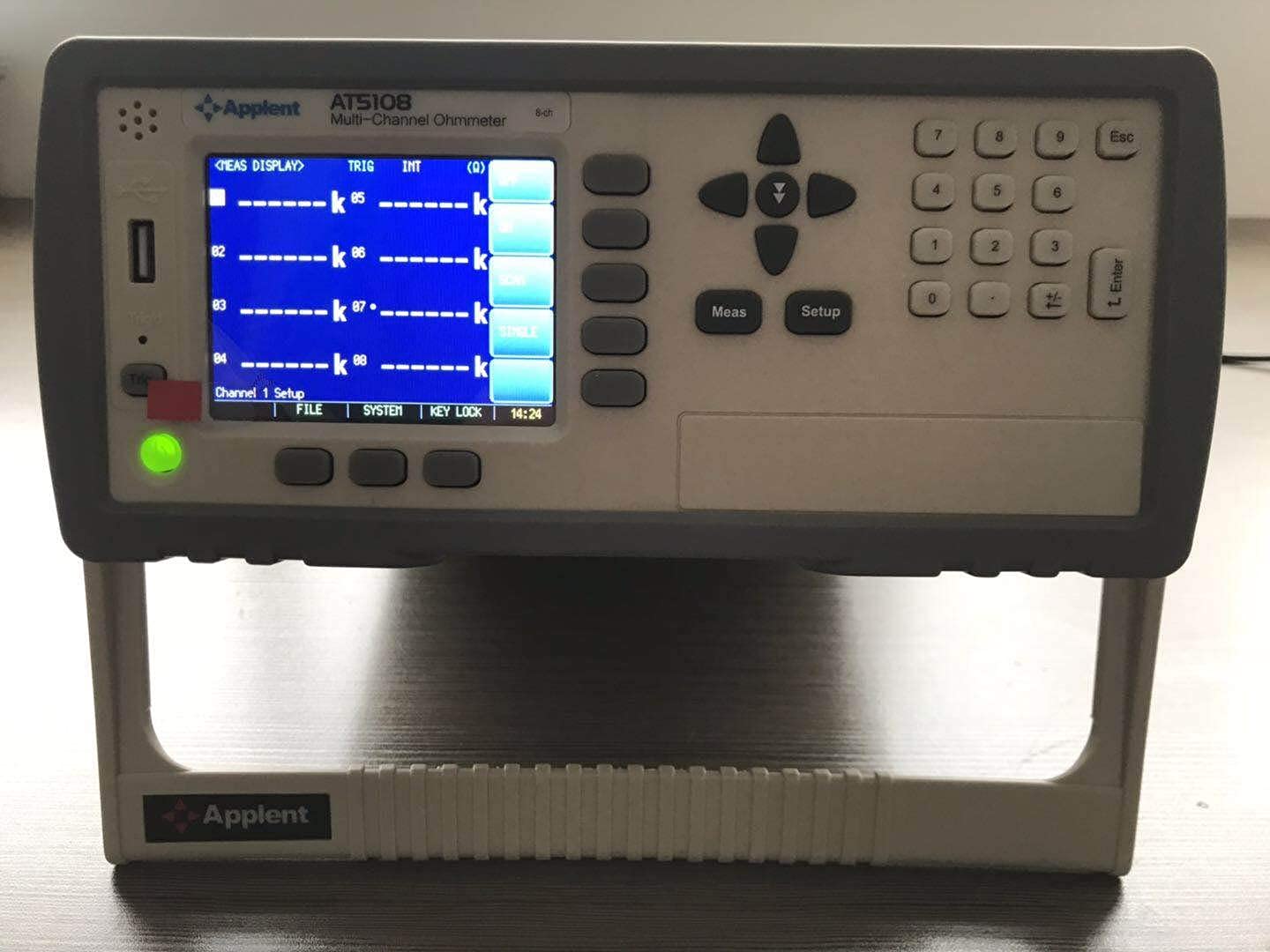

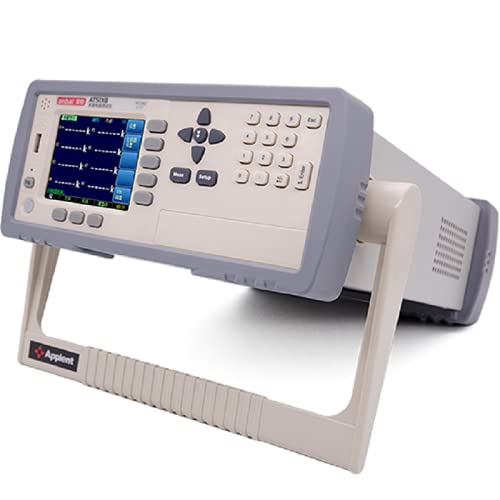

AT5108, AT5110, AT5120 are brand new design wide range and multi-channel resistance meter with high accuracy, which can scan and test multi- channel of resistance and can set a comparator for each channel. AT5110 and AT5120 adopt high performance ARM micro processor control. The true-color 3.5 inches LCD can display multi channels of resistance simultaneously. Resistance range 1μΩ～30KΩ and max display result 30,000 digits. Its temperature compensation function can adapt different testing requirements. It can be applied to automation equipment. RS232C and Handler interface output 10/20 channels so as to improve the testing ability of production automation. Specifications AT5108AT5110AT5120 AT5130 Parameters DC resistance Channel 8 channels (Scanning)10 channels (Scanning)20 channels (Scanning)30 channels (Scanning) Accuracy 0.05% Max Reading30,000 Measurement Range1μΩ～30kΩ Signal SourceMax current：<1A Range Automatic, manual and nominal Speed 30ms/channel (manual) Correction Short circuit zero correction within full range Trigger Internal, manual, level, external and remote Interface RS-232C interface （SCPI instruction set, Handler (PLC) interface） ComparatorEach channel can be independently set Temperature compensationAccuracy: 0.2℃, temperature range: 0-80℃ Test Lead Four-terminal shield for each channel（including 2 detection element and 2 driving element）and other Other TFT true color LCD display; can set resistance upper limit and low limit Temperature compensation ; Keyboard lock function General Features Power supply voltage：198VAC～250VAC frequency：50Hz power：max 15VA Size and weight Outer size（mm）：264 (width)x107(height)x350 (depth) Inner size：216(width)x88(height)x323(depth) Weight: 4kg Ordering Information Accessories ATL503 Kelvin clip 8pcs/10 pcs ATL503 Kelvin clip 20 pcs/30 pcs
