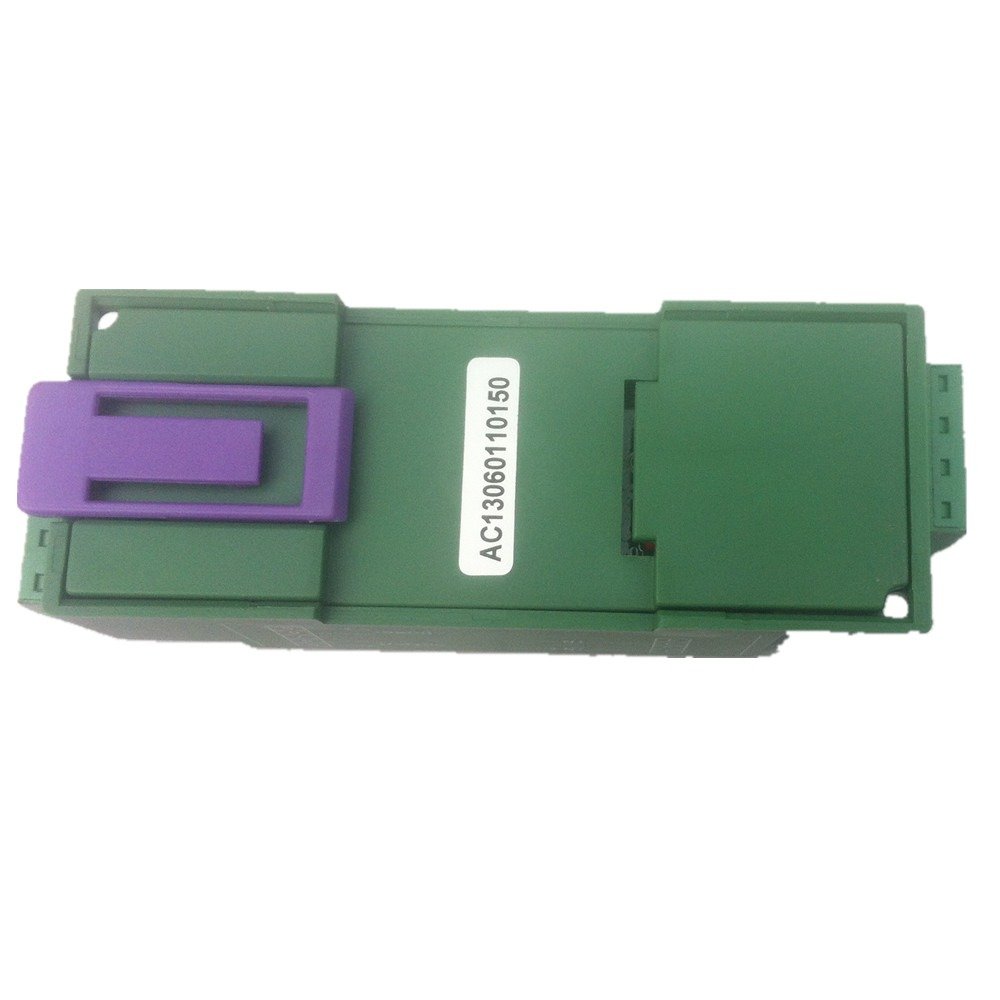

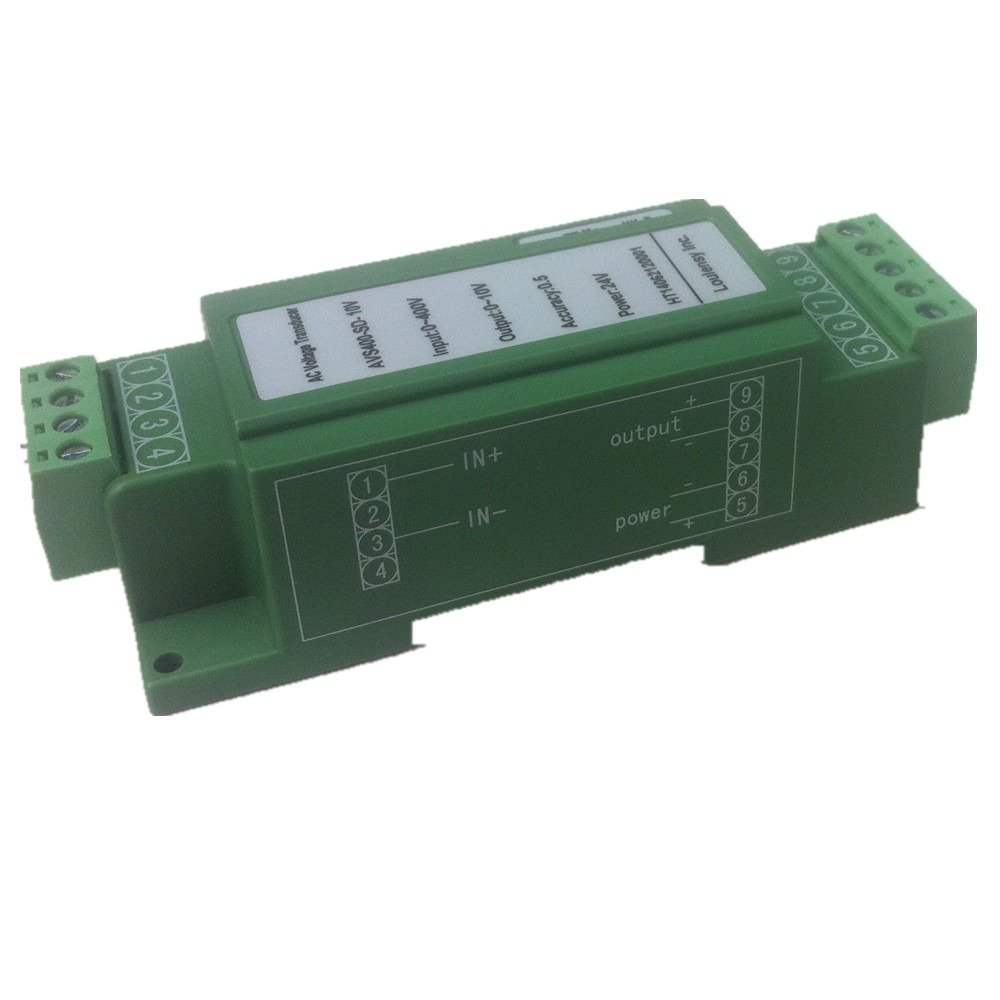

0-300V DC to 0-20mA DC Voltage Transducer Sensor - Industrial Automation, Solar Power Monitoring & Battery Voltage Measurement
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:43906039
Product Description
Input:0-300V DC Isolation Resistance:20M Ohm(DC500V) or above Capacity Max:0-1000V DC (Customerized,contact operator if you need other input ranges,e.g.0-75mV or 0-300V) Output:0-20mA DC Power Supply:11-30V DC(any stable power,e.g. 15V dc) Dimension:95*37*32mm(L*W*H) Power Consumption: less than 0.3 VA Working Stability: annual change < 0.2% Accuracy:0.2% F.S Feature:Voltage Terminal Insert,standard din rail(35mm)mounting Working Environment:-10 to 50 degrees Centigrade,20%-90% without condensation Show more › See more product details
Product Features
Input0-300V DC
Isolation Resistance20M Ohm(DC500V) or above
Capacity Max0-1000V DC (Customerized,contact operator if you need other input ranges,e.g.0-75mV or 0-300V)
Output0-20mA DC
Power Supply11-30V DC(any stable power,e.g. 15V dc)
Dimension95*37*32mm(L*W*H)
Power Consumption less than 0.3 VA
Working Stability annual change < 0.2%
Accuracy0.2% F.S
FeatureVoltage Terminal Insert,standard din rail(35mm)mounting
Working Environment-10 to 50 degrees Centigrade,20%-90% without condensation
