ZQ-003 Toy Safety Tester - Sharp Point & Edge Detector for Childproofing Baby Supplies | Perfect for Nursery, Playroom & Toy Safety Inspection

Product Description

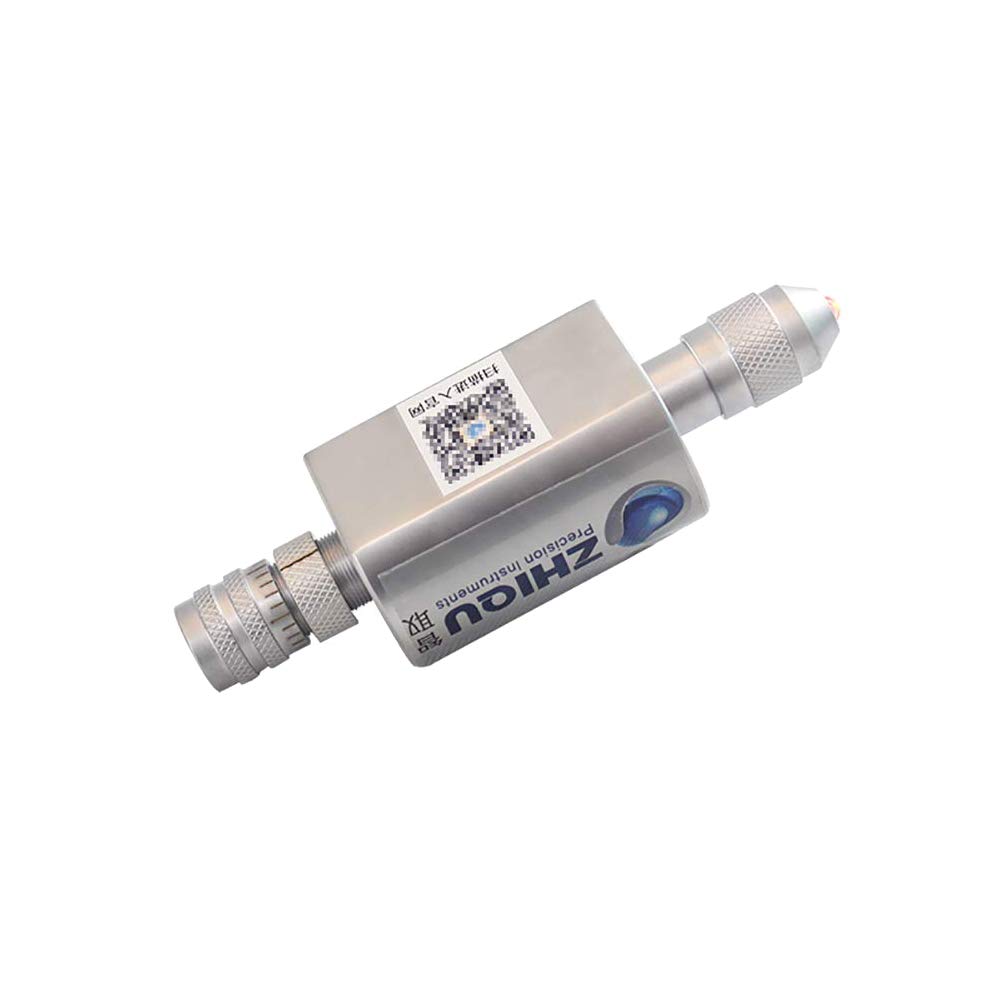

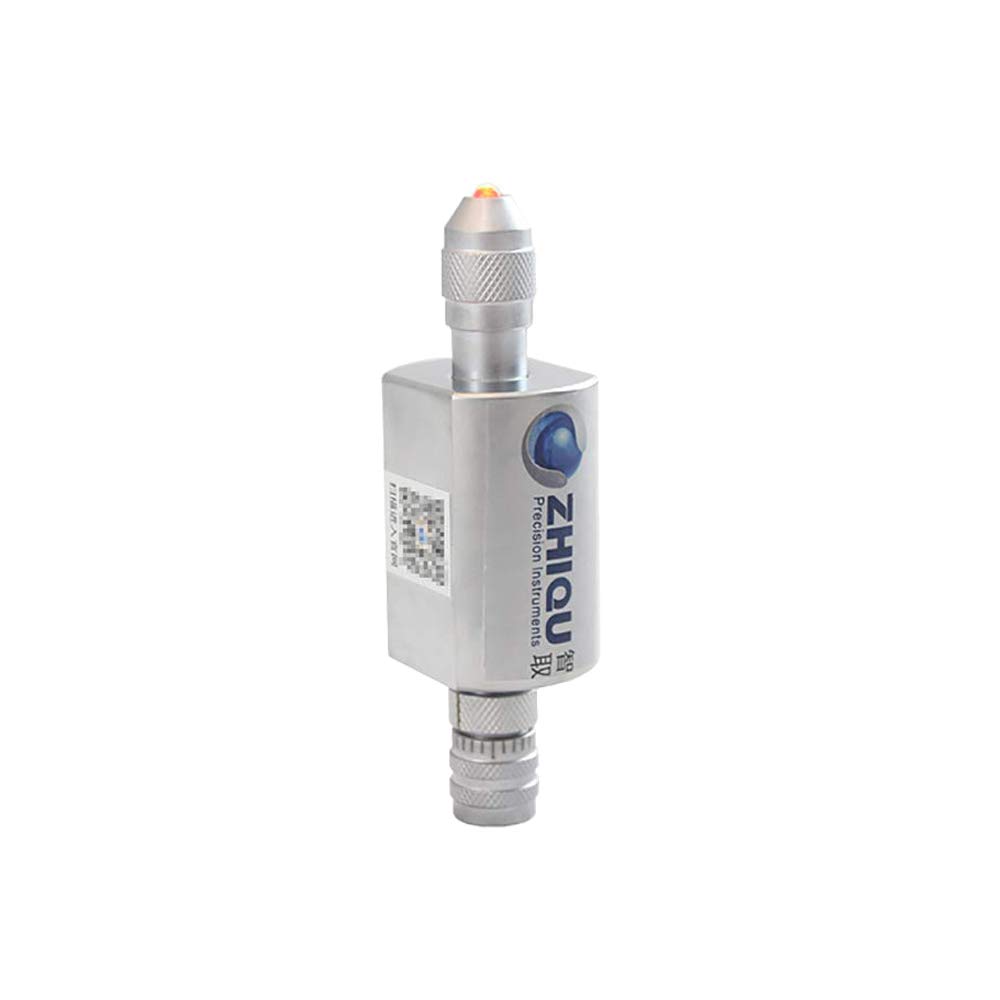

ZQ-003 Toy Sharp Point Tester Toy Sharp Cusp Tester Child Baby Supplies Angle Detector Descriptions: ZQ-003 sharp point tester is used to detect the location of toys can be touched, whether there is a sharp point of harm safety sharp point, it belongs to the toy safety testing project, the requirements of the technical parameters are consistent among the countries Parameters: Standard: *USA:16 CFR 1500.48/ASTM F963 4.8; *European Union:EN-71 1998 8.14; *China:GB6675-2003 A.5.9 Volume: 112*16*16mm Weight: 80g Instructions: Place sharp point tester on the touch point, and check whether the pointed point can be inserted into sharp tester to reach the specified depth. The test point is inserted into the measuring groove and applied 1 pounds of external force to make the indicator light, and the sharp point is determined as sharp point Before each inspection must be adjusted according to the provisions of the induction head, in order to ensure accurate and sensitive induction Adjust the sharp point tester, first loosen the locking ring, and then rotate the locking ring to make it move forward enough distance to the indicator device, so as to show the calibration reference scale on the circle. Rotate the lid clockwise until the indicator lights up. Turn the measuring cover counterclockwise until the appropriate micrometer mark is consistent with the calibration scale, then turn the locking ring until the locking ring is closed to the measuring cap to hold the test cap fixed Package includes: 1 x ZQ-003 Toy Sharp Point Tester
