AT825 Digital LCR Meter Multimeter - 10KHz L/C/R/Q/D/Z/Theta/ESR Tester with LCD Touch Screen, USB & AC100-240V - Precision Electrical Testing for Electronics Repair, DIY Projects & Laboratory Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:81278979
Product Description
Feature● TFT-LCD Display● Correction: OPEN and SHORT● View: ΔABS, Δ% or Sorting Result on 3rd Line● Comparator Function: 10 files,6 bins: P1~P9,NG,AUX, HI, IN, LO● Interface: RS232C and Handler● Optional Interface: USB● Test signal monitor: Vm and Im● Avarage rate: 1~99times● Measurement Terminal: 5 terminals● Key lock functionSpecificationParameters L,C,R,Z,D,Q,θ(deg),θ(rad)ESRAccuracy 0.2%Frequency 100Hz,120Hz,1kHz,10kHzDisplay Range L: 0.01μH-9999H D,Q: 0.0001 – 9999 C: 0.01pF - 9999μF θ(deg):-179.99°-179.99° R,Z:0.0001Ω - 99.99MΩ θ(rad):-3.1416 – 3.1416Source Resistance 100ΩRange Automatic or ManualDisplay Max Principle Parameter: 49999 Sub Parameter：49999Signal Level 0.6VrmsSpeed 4 times/second，1.5 times/secondComparator 1 sets, compare main parametersAdjustment Open/short scan frequency reset for each rangeInterface Build-in Mini-USB interface（virtual interface） Charging interfacePlease check the model and size before you buy.If you have any questions about the product, please contact us.
Product Features
Basic accuracy: 0.2%
Test speed 4 times / sec, 1.5 times / sec Output impedance 100Ω signal level 0.6Vrms range Automatic and manual; Maximum reading: Main parameters: 49999 Sub-parameter: 49999
Comparator five-speed sorting Trigger mode internal trigger, manual trigger, remote trigger

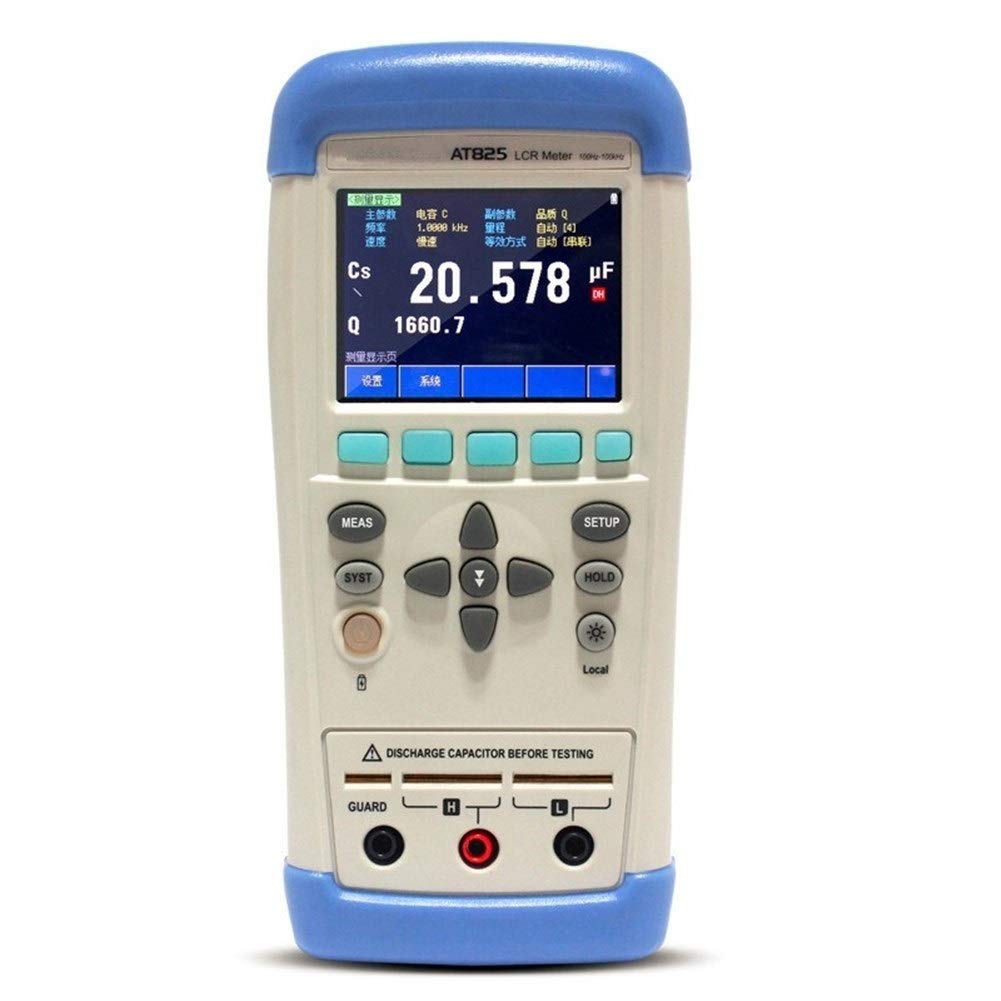

AT825 handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, AT825 handheld LCR digital meter have the highest configuration.
With the highest frequency of 100Khz, constant 100 source internal resistance, 1Vrms measurement voltage level, and 0.2% accuracy, make AT826, AT825 have the excellent performance of both desktop instrument and portability of handheld.
