Product Description

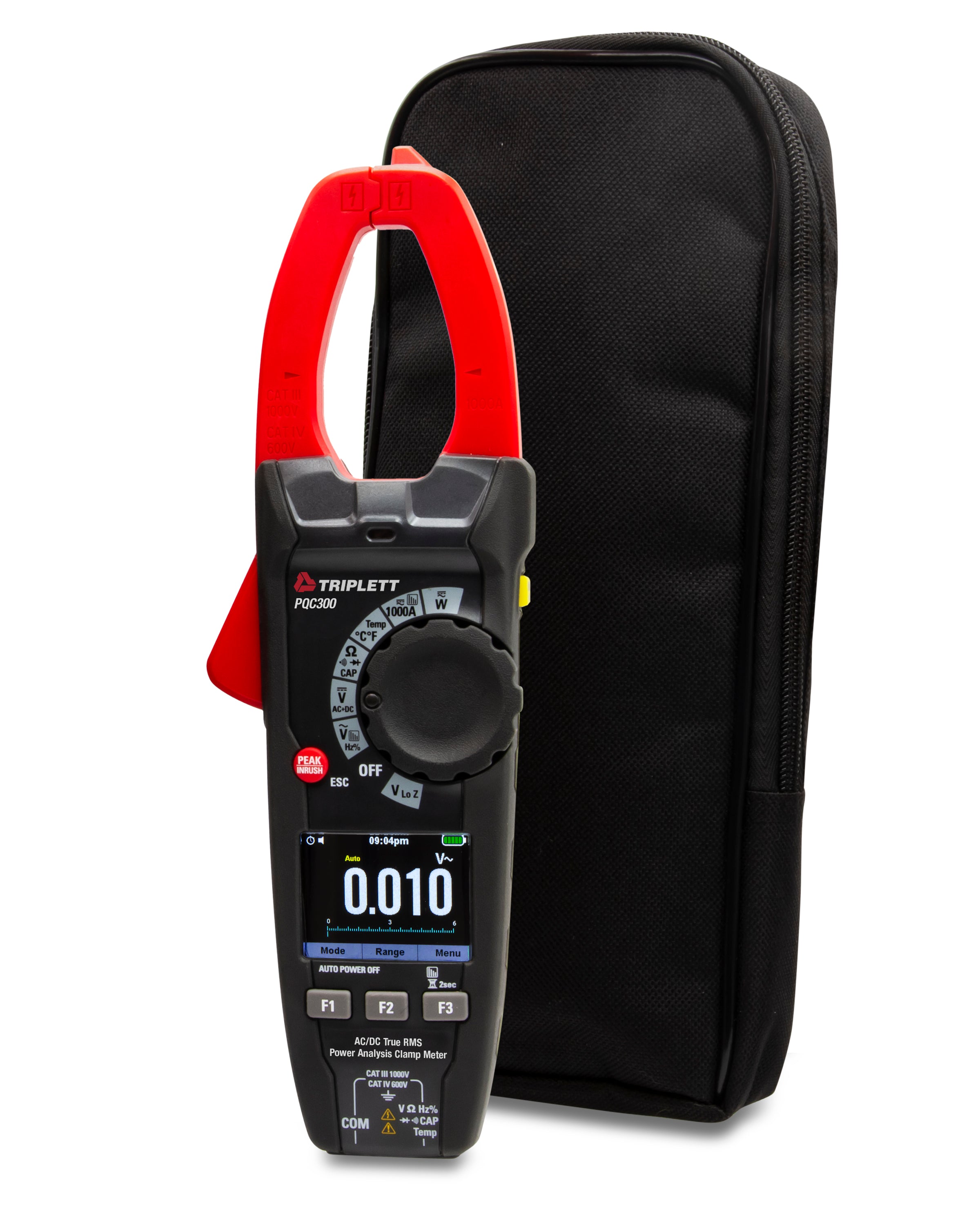

The Triplett Model PQC300 Single Phase True RMS Power Quality Clamp Meter is a comprehensive tool for monitoring power quality.
DESCRIPTION
The Triplett Model PQC300 Single Phase True RMS Power Quality Clamp Meter is a comprehensive tool for monitoring power quality. It measures Active/Apparent/Reactive Power, Energy, Harmonics, THD, Power Factor, and more, offering a complete power quality analysis. Its clamp-on feature with a 1.26" (33mm) clamp jaw allows for AC and DC current measurement up to 1000A without interrupting the circuit or causing damage. The True RMS feature ensures better accuracy when measuring non-sinusoidal or noisy waveforms. Besides, it offers extensive measurement capabilities, including AC/DC Voltage, AC + DC Voltage, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode Test, and Continuity. The meter's 6000-count graphical RGB LCD enables clear reading of measurements, and its inrush current function captures the instantaneous surge when power equipment is turned on. With memory for 12,000 readings, Min/Max function, a built-in flashlight, and an auto power-off feature, the PQC300 is a robust and reliable tool for power quality monitoring. The package includes Test Leads, a Type K Thermocouple Bead Probe, 3 AAA batteries, a carrying case, and comes with a 1-year warranty for peace of mind.
CATEGORY:
Features
Comprehensive Power Quality Analysis: Measures Active/Apparent/Reactive Power, Energy, Harmonics, THD, Power Factor, and more.True RMS: Ensures accurate measurements for non-sinusoidal or noisy waveforms.Non-Intrusive Current Measurement: 1000A TRMS AC/DC current measurement without interrupting the circuit.Generous Clamp Jaw Size: Features a 1.26" (33mm) clamp jaw for easy access.Inrush Current Function: Captures the instantaneous surge current when power equipment is turned on.Detailed Display: 6000 counts graphical RGB LCD for clear reading of measurements.Low Impedance Mode (LoZ): Helps identify ghost voltages.Data Storage: Stores up to 12,000 readings.Safety Rating: CAT IV-600V safety category.Includes Test Leads, Type K Thermocouple Bead Probe, 3 AAA batteries, and carrying case1-year warranty
Specifications
| | PQC300 |
| True RMS | · |
| Display | 6000 count RGB LCD |
| AC Current | 1000A |
| ACA Accuracy | ±2.8% |
| DC Current | 1000A |
| Active Power | 999.9kW (±3% + 5d) |
| Apparent Power | 999.9kVA (±3% + 5d) |
| Reactive Power | 999.9kVAR (±3% + 5d) |
| Power Factor | 0.20 to 1.00 (±3°) |
| Harmonics | 1 to 25 (±5% + 20d) |
| Active Power Energy | 99.9kWh (±3% + 5d) |
| Apparent Power Energy | 99.9kVAh (±3% + 5d) |
| Reactive Power Energy | 99.9kVARh (±3% + 5d) |
| AC/DC Voltage | 1000V |
| Resistance | 60MΩ |
| Temperature | -40 to 1800°F (-40 to 1000°C) |
| Capacitance | 6mF |
| Frequency | 10kHz |
| Duty Cycle | 10.0 to 90.0% |
| Continuity | <50Ω |
| Lo Z Mode | Yes |
| NCV Detector | >90V |
| Peak Capture | >1ms |
| Inrush Current | 100ms |
| Memory | 12,000 readings |
| Power | (3) AAA batteries |
| Safety Category | CAT IV-600V |
| Dimensions | 9.4 x 3.1 x 2" (239 x 80 x 49mm) |
| Weight | 112.3oz (350g) |
