Digital Paint Coating Thickness Tester - Easy to Use Thickness Meter with 2 Substrates for Industrial Metal, Plastic & Automotive Applications | Perfect for Quality Control, Manufacturing & Surface Coating Measurement

Product Description

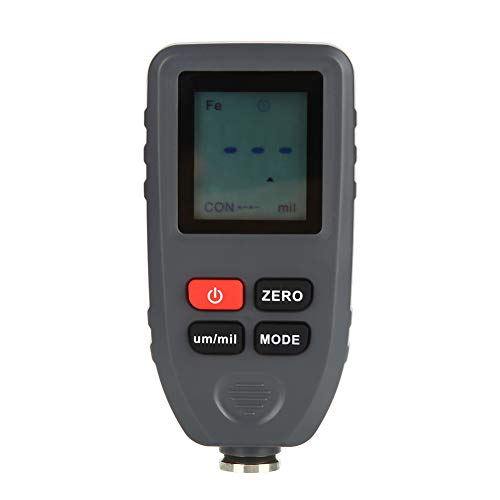

Description:The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, such as paint, enamel, on steel, paint and anodizing coating on aluminum, copper. The gauge takes the integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.Features: Fe--Magnetic substrate indicator: Steel / Iron. NF--Non-magnetic substrate indicator: Copper / Aluminum. Auto power off flag, auto power-off in 15 minutes with no-operation. LCD screen display, convenient to read in a dim environment. Accurate, fast and easy use with powerful function. Specifications: Probe F Probe N Principle Magnetic Induction Eddy Current Range 0-1300um 0-51.2mil 0-1300um 0-51.2mil Accuracy ±(3%+2um) ±(3%+0.08mil) ±(3%+2um) ±(3%+0.08mil) Resolution 0.1um/0.01mil 0.1um/0.01mil Calibration Points: ZERO/50/100/250/500/1000um Units um, minimum curvature radius convex: 1.5mm minimum curvature radius concave: 25mm minimum measuring area: Diameter 6mm minimum thickness of substrate 0.5mm(0.02") 0.3mm(0.012") Power 1 x 9V battery (NOT included) Operation Environment Temperature:0-40℃(32-104℉) Humidity:20%-90%RH Color: Grey Size: Approx. 12 x 6 x 3cm / 4.72 x 2.36 x 1.18inch Weight: Approx
