Product Description

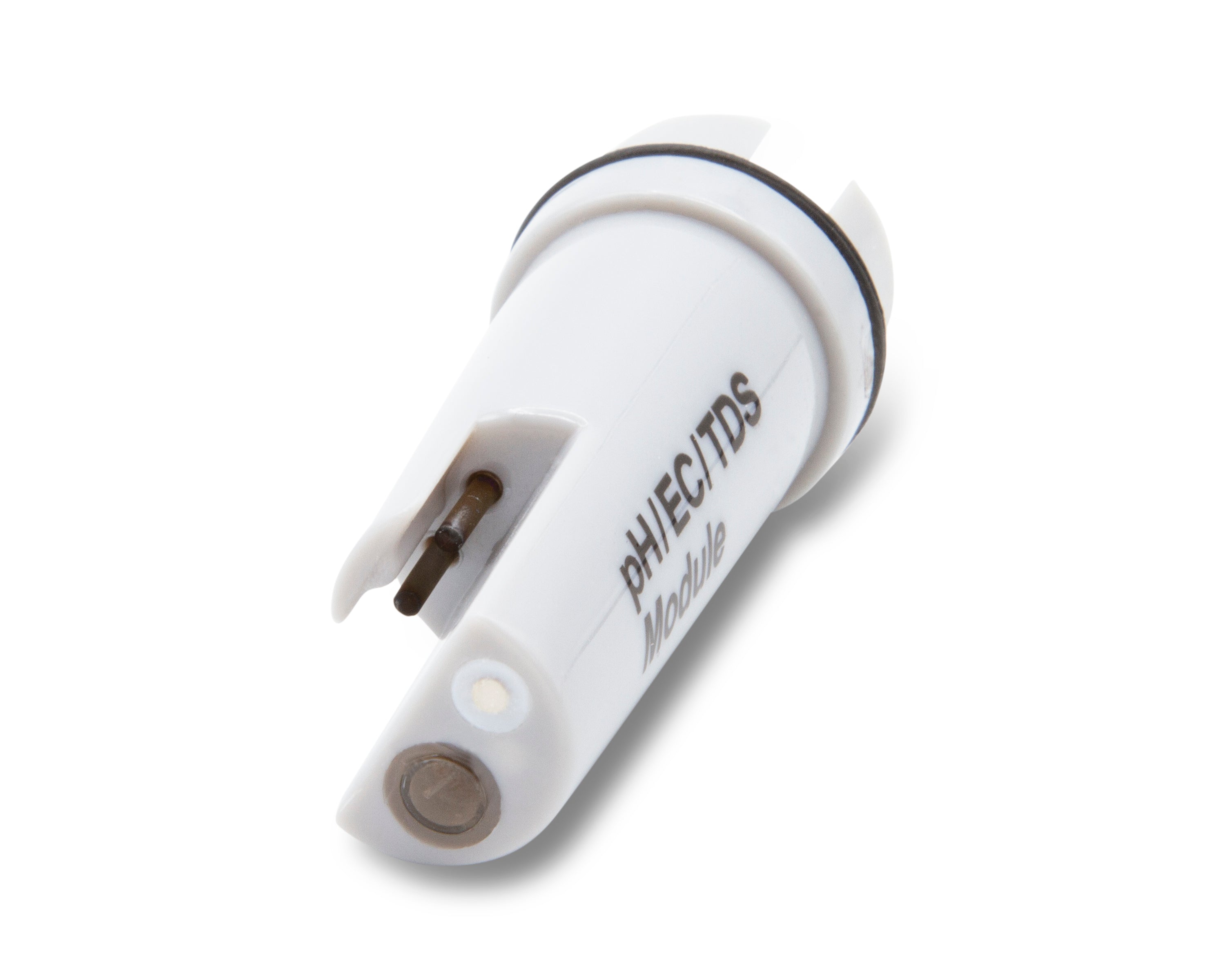

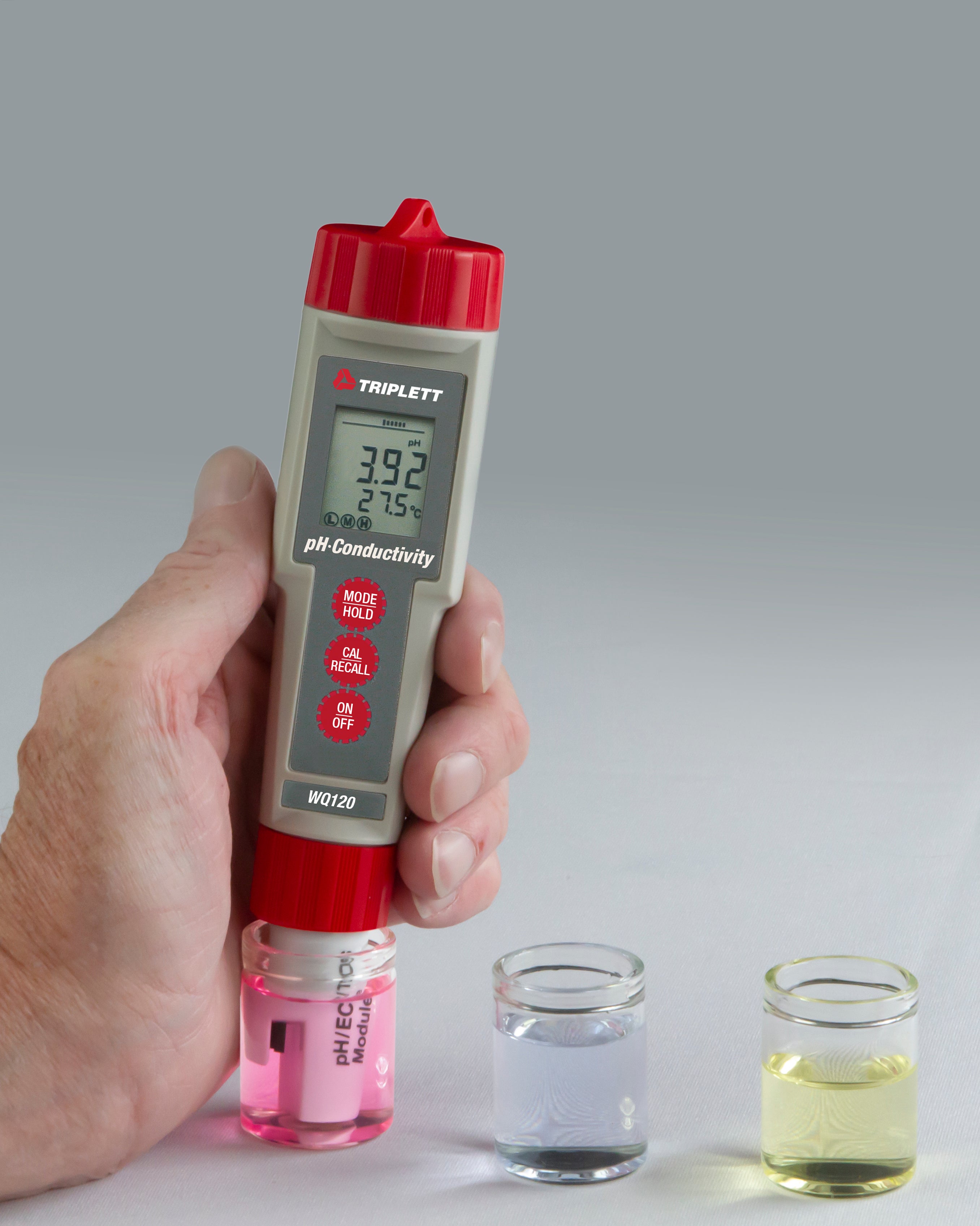

The Triplett Model WQ120 waterproof (IP57) PH/TDS/Conductivity/Salinity Pen combines a flat surface pH electrode with a multi-range conductivity cell to measure pH, TDS, Conductivity, Salinity and Temperature. The flat surface electrode for pH can measure solids, semi-solids, and liquids.
DESCRIPTION
The Triplett Model WQ120 waterproof (IP57) PH/TDS/Conductivity/Salinity Pen combines a flat surface pH electrode with a multi-range conductivity cell to measure pH, TDS, Conductivity, Salinity and Temperature. The flat surface electrode for pH can measure solids, semi-solids, and liquids. It simultaneously displays pH, TDS, Conductivity, or Salinity and Temperature and has an analog bargraph for viewing trends. It features ATC (Automatic Temperature Control) that compensates for temperature changes, adjustable TDS compensation ratio, 1-, 2-, or 3-point pH and Conductivity calibration, and a RENEW warning when probe needs cleaning or replacement. Additional features include the ability to store/recall 25 readings, a Hold function that "freezes" the reading on the display, and Auto power off (after 10 minutes) with disable conserves battery life. Includes protective cap, (4) CR2032 batteries, sample cup with cap, and neckstrap.
CATEGORY:
Features
- Measures pH, TDS, Conductivity, Salinity and Temperature
- Flat surface electrode for pH can measure solids, semi-solids, and liquids
- ATC (Automatic Temperature Control) compensates for temperature changes
- Dual display for pH, TDS, Conductivity, or Salinity and Temperature plus analog bargraph for trends
- Adjustable TDS compensation ratio
- Store/recall 25 readings
- 1-, 2-, or 3-point pH and Conductivity calibration
- RENEW warning when probe needs cleaning or replacement
- Auto power off (after 10 minutes) with disable
- Waterproof (IP57)

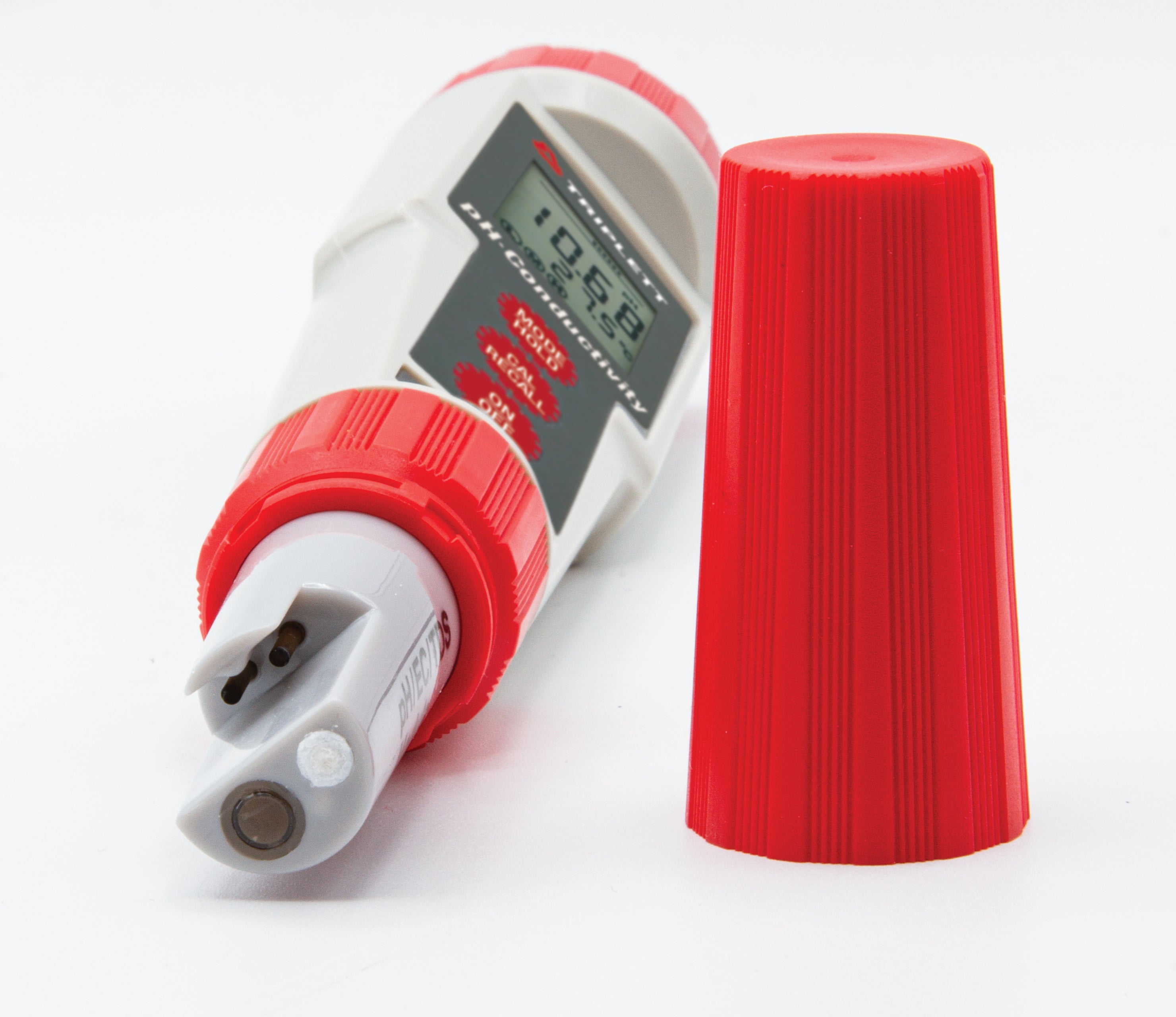

- Includes meter electrode with protective cap, (4) CR2032 batteries, sample cup with cap, and neckstrap
Specification
| WQ120 |
| pH Range | 0 to 14pH (0.01pH) |
| Accuracy | ±0.01pH |
| Conductivity Range | 0-200µS, 200-2000µS, 2-20mS (0.1µS) |
| Accuracy | ±2% FS |
| TDS Range | 0-100ppm (mg/L), 100-1000ppm (mg/L), 1-10ppt (g/L) (0.1ppm) |
| Accuracy | ±2% FS |
| Salinity Range | 0-100ppm, 100-1000ppm, 1-10ppt (0.1ppm) |
| Accuracy | ±2% FS |
| Temperature Range | 32 to 194°F (0 to 90°C) (0.1°F/°C) |
| Accuracy | ±1.8°F/1°C |
| TDS Ratio | 0.40 to 1.00 adjustable (0.67 default) |
| Salinity Ratio | 0.40 to 0.60 auto |
| Conductivity ATC/Range | 2% per °C/32 to 140°F (0 to 60°C) |
| Calibration | 1-, 2- or 3-point |
| Memory | 25 readings |
| Power | (4) CR2032 Batteries |
| Dimensions | 7.8 x 1.5 x 1.5" (198 x 38 x 38mm) |
| Weight | 3.5oz (100g) |
