Product Description

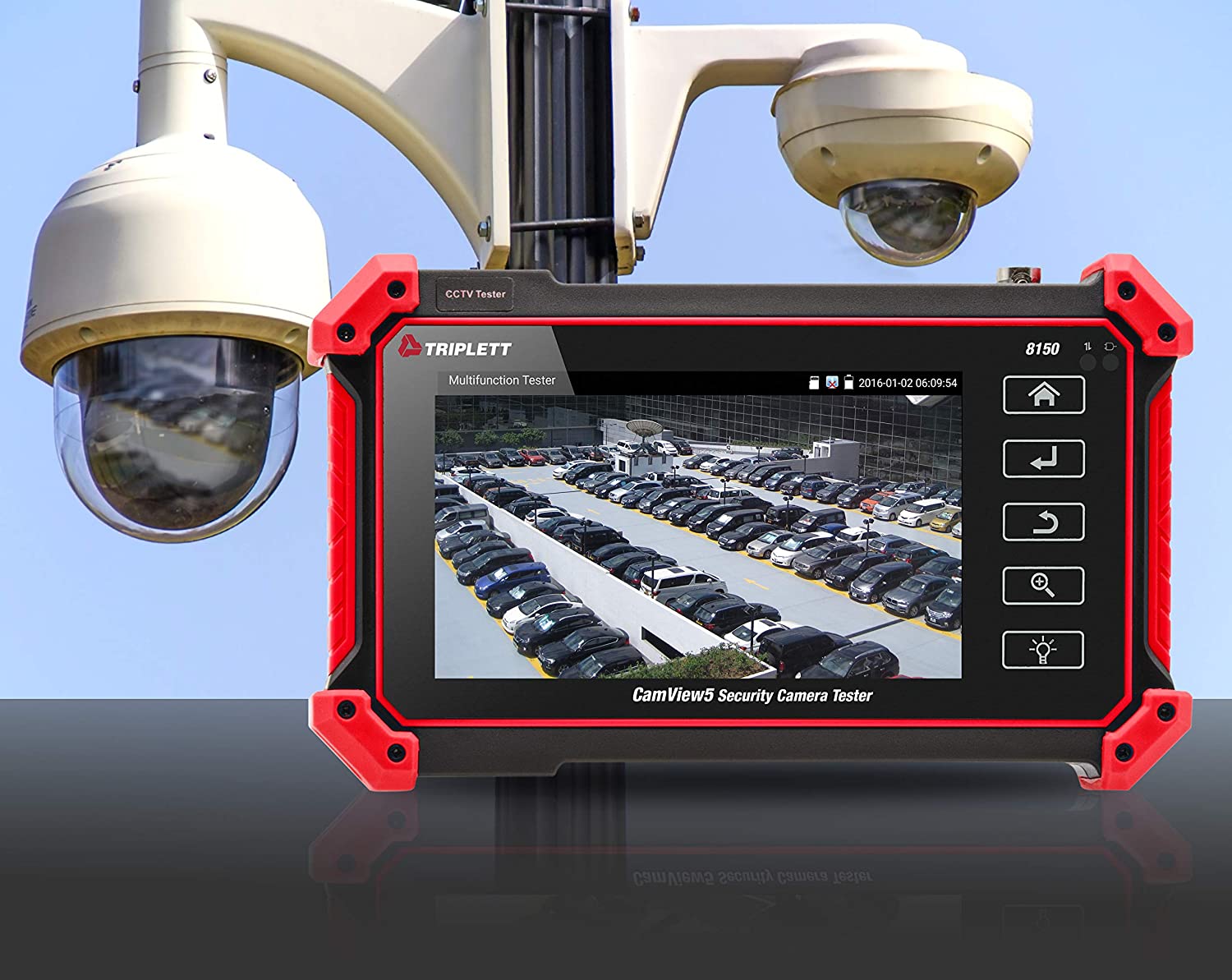

The Triplett 8150 CamView IP Pro 5 has a 5 inch IPS touch screen monitor and is designed for the maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265.
DESCRIPTION
The Triplett 8150 CamView IP Pro 5 has a 5 inch IPS touch screen monitor and is designed for the maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265. The 1920 x 1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports ONVIF PTZ and analog PTZ control and is compatible with more than 30 protocols. The combination of touch screen and key buttons make the CamView IP Pro 5 very user- friendly. Other functions include providing 24W PoE power to your camera, PING and IP address searching, DC 12V 3A power output, HDMI output and much more. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers and technicians. Comes complete with Li-ion battery, AC adapter/charger, DC power cable, BNC cable, RS485 cable, audio cable, wrist strap, and carrying case.
CATEGORY:
Features
- 8MP tester (1080p) with HDMI, BNC, and RJ45 ports
- Ookla speed test
- Works with IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265
- WiFi for connecting to WiFi cameras and to create a WiFi hotspot
- Has PoE (24W) and DC power output (12V/3A) and HDMI output
- Auto-recognize HD coax camera type and resolution
- RJ45 TDR cable test and cable quality test
- UTP cable test detects opens, shorts and miswires
- 4 hour run time with 2-3 hour charge
- Compact and lightweight
Specifications
| | 8150 |
| IPC Protocol | ONVIF, RTSP, RTP |
| Network Test | 10/100/100M detect; IP address scan, ping, packet test; DHCP server; trace route; link monitor |
| Rapid IP Discovery | Discover the IP addresses in the connected device’s network segment |
| WiFI | Display upload/download connection speeds; create a WiFi hotspot |
| IP Camera Test | Display image from the 4K H.265 camera by mainstream |
| Data Monitor | Capture and analyze the command data from controlling device; can also send hexadecimal |
| Video Test | NTSC/PAL/HD-CVI 3.0/AHD 3.0/HD-TVI 3.0 |
| Audio Test | 1 channel audio signal input |
| PTZ Control Test | Support RS485; Compatible with more than 30 protocols |
| Lens Simulation | Simulate different lens display areas: 2.8, 3.6, 4, 6, 8, 12, 16, 25mm |
| Poe Test power | 48V power output; Max power 24W |
| 12V Power Output | 12V/3A output interface |
| Snapshot/Video | Capture and record images and live video with playback |
| Memory | Internal: 3.2GB; External: optional microSD 32GB max |
| Display | 5" IPS Touch, 1920 x 1080 |

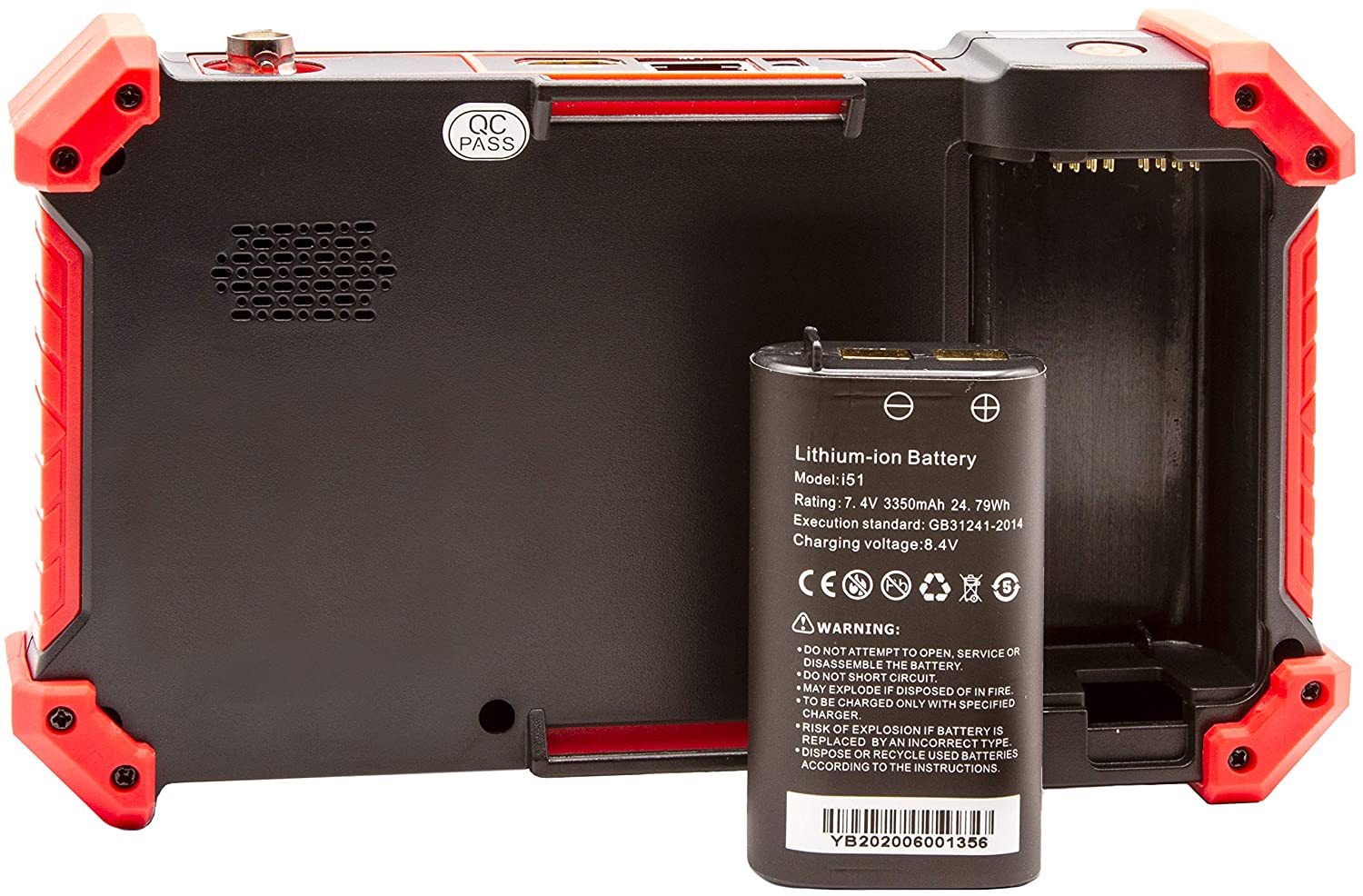

| Power | Lithium-ion battery; 5-hour work time |
| Dimensions | 7.2 x 4.3 x 1.4” (183 x 110 x 36.5mm) |
Downloads
FAQs
- Q. I am getting wrong password and username message
A. User name and password information is not an error of the tester. This information is the camera only. Our testers do not have any passwords or user information requirements. If you are having trouble with passwords you need to contact the camera manufacturer or refer to their manual for default user name password information or details on any special set up specifications they may have for initializing their cameras.
- Q. How do I setup an AXIS Camera to allow ONVIF Users
A. Download our Document
and Document
- Q. what is the maximum capacity SD card I can use?
A.The Triplett 8150 unit can only support a maximum 32GB SD card. Anything larger will not work with the unit.
- Q. Can these devices be scanned for Virus?
- A. The 8150 can be scanned if you download the proper software (they have an android operating system that can add and remove applications).
- Q. Can wireless be deactivated?
- A. Wi-Fi can be enabled and disabled.
- Q. Are there software downloads for the Triplett 8150?
- A. We do not have software downloads for the Triplett 8150. Software updates are performed by connecting the 8150 to a network, going into applications and selections the application update option. This process is detailed in the user manual (section 6.5) available here .
