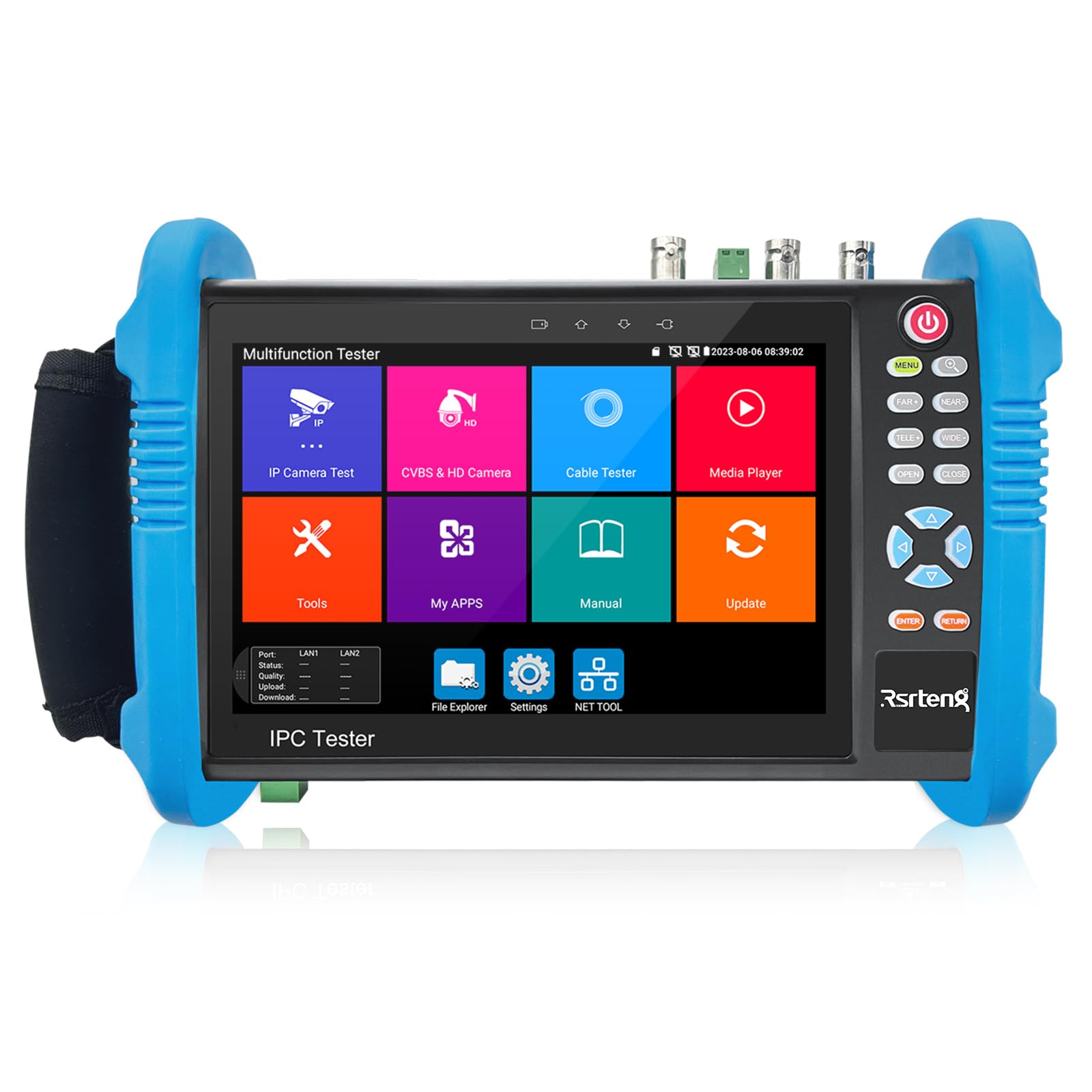

8K 32MP IP CCTV Camera Tester - 7inch IPS Touch Screen with TDR, POE, WiFi & HDMI Support for 8MP CVI/TVI/AHD/SDI/CVBS Cameras | IPC-9800ADHS Pro | Ideal for Security System Installation & Maintenance

Product Description

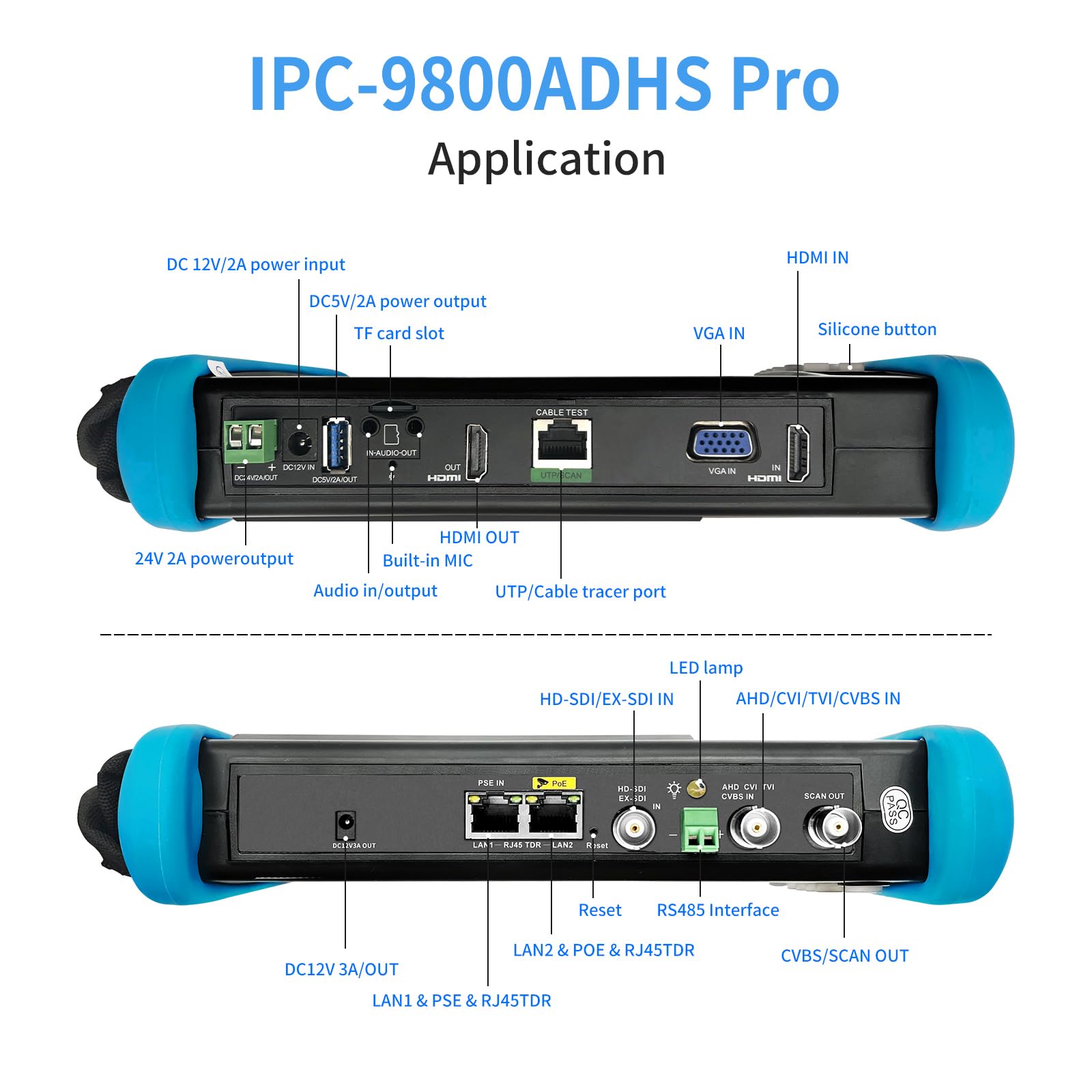

Rsrteng Upgrade IPC-9800ADHS Pro Multifunctional CCTV Camera Tester The Rsrteng IPC-9800ADHS pro CCTV camera tester support max 8K 32MP 4K 12MP IP camera and max 4K 8MP coaxial HD CVI TVI AHD SDI CVBS camera test;All kinds of test tool such as IP discovery,ONVIF,WIFI,POE,VGA input,HDMI I/O,RJ45 TDR cable tester,Network test tools,DC 5V.2A/12V.3A/24V.2A power output. Max 8K 32MP 4K 12MP IP Camera Tester and Max 4K 12MP Coaxial Camera Tester Max 8K 32MP 4K12MP IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video, Auto view the video, create testing report. Support Hik and DH camera test tool, compatible with more than 90% of existing brand cameras. Previous page Next page 1 IP Discovery ONVIF 2 Coaxial Camera Test 3 PTZ Control OSD Menu 4 HDMI/VGA Ethernet Ports 5 Two Types of HDMI Output Previous page Next page 1 WIFI Analyzer/Hotspot 2 DH Hik Test Tool 3 Network Tools 4 UTP Cable Tester TV Out 5 RJ45 TDR/Length Test Previous page Next page 1 POE Output/Mangement 2 App Update/Multi-language 3 CPU/RAM/ROM/System/Manual 4 Application Port 5 7" Touch Screen/Battery Previous page Next page 1 TesterPlay 2 Tools/Parameters 3 Parameters 4 Tester Display Diagram 5 Package Included CPU/RAM/ROM/System/Display 4-core 2.0GHz/1GB(DDR)/8GB(EMMC), Android 11.0 operate system, 7 inch IPS touch screen, 1280*800 resolution, Backlit buttons. IP camera test Max 8K 32MP IP camera test main stream supports up to 8K 32MP 8160x3616 24fps 4K 12MP 4000x3000P/3840*2160P resolution. IP Discovery/ONVIF/IPC test /RTSP play /Client APK, Rapid Video, Auto view the video, create testing report. For Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters. For Dahua test tool, modify the user name, password and IP parameters. Coaxial HD test Max 4K 8MP 8MP TVI/CVI/AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu. Only TVI support coaxial audio test. 8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu. 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). Support CVBS color bar test. PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols. CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable. CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). Support CVBS color bar test.PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc. CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable. IP & CVBS test & Zoom Image 1 channel HDMI input, support 4K 3840x216IP& CVBS test at the same time, converter test from analog to digital with dual test window. 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back.0P 30fps, 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details). 1 channel VGA input, support 1920x1080P 60fps. HDMI input/output VGA input 1 channel HDMI input, support 4K 3840x2160P 30fps, 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details). 1 channel VGA input, support 1920x1080P 60fps. W. USB DC5V/2A power output, as a power bank. DC12V/3A power output ,supply temporarily power for the camera. DC24V/2A power output ,supply temporarily power for the speed dome camera. POE & Power output Standard PoE power output, DC48V, max power 25.5W. USB DC5V/2A power output, as a power bank. DC12V/3A power output ,supply temporarily power for the camera. DC24V/2A power output ,supply temporarily power for the speed dome camera. UTP/RJ45 TDR cable test Test UTP cable connection status and display on the screen. Read the number on the screen. Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. Network test & interface Trace route, Link monitor, DHCP server, port flashing, Ping test. RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive. WiFi & Wifi Anylanyzer Built-in WIFI, 2.4GHz, speed 150Mbps, display wireless camera image. Support view wifi information, test wifi strength, analyze channel occupancy and channel level, etc. Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone. Power management/Data monitor View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. Captures and analyzes the command data from controlling device, also can send hexadecimal. Drop-down menu & TesterPlay You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface. Screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone). Battery & Power supply Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh. After charging 3 to 4hours, normal working time 15 hours. DC12V/2A power supply. Operation languages OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. Dimension Weight 203x140x47mm(8x5.5x1.85inch) / 935g(2.06lbs). Working Temperature: '-10℃ to +50℃ (14℉ to 122℉). Working Humidity: 30% to 90%.
