Fox & Hound Jr™ Compact Tone & Probe Kit - Professional Wire Tracer for Security Systems, Thermostats, Telephone & Network Cables | Ideal for Electricians & DIY Home Wiring Projects

Product Description

The Fox and Hound Jr wire tracing kit for security, thermostat, data, telephone,audio and other types of wiring.

DESCRIPTION

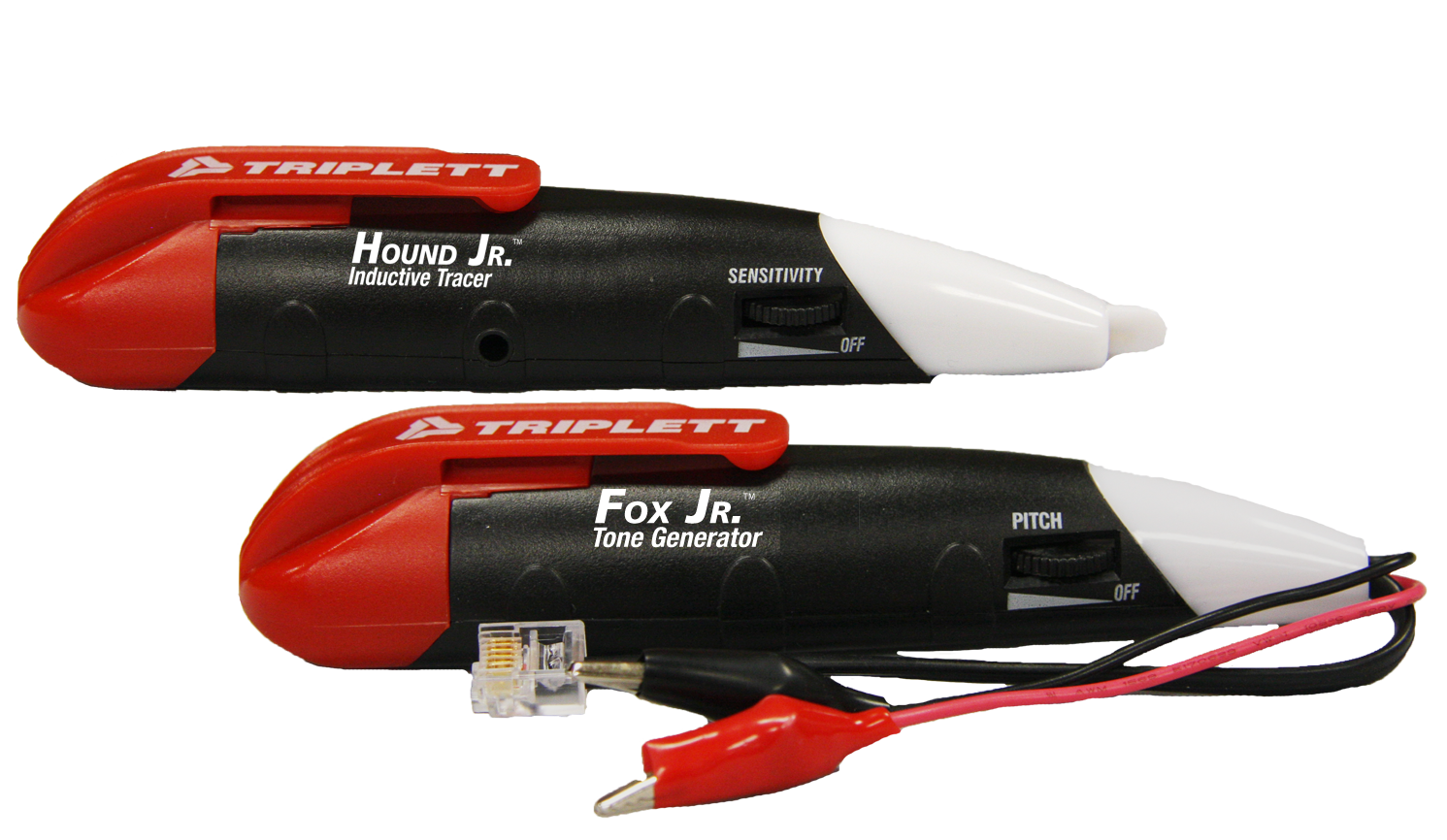

The Fox and Hound Jr wire tracing kit for security, thermostat, data, telephone,audio and other types of wiring. It consists of the Fox Jr Tone Generator and the compact Hound Jr Inductive Amplifier Probe. The Fox Jr is a battery operated handheld multi-function Toner that generates a Warble tone with a user adjustable pitch. It connects easily with alligator clips or RJ-11 / RJ-45 combo pluga and has 120VAC line cross protection. The Hound Jr is a battery operated handheld lightweight Probe, with a thumb-wheel Sensitivity control and Signal Strength indicator LED that can detect trace tones up to 12" away. It has a built-in earphone jack that will automatically mute the loudspeaker for use in quiet or noisy areas. Comes complete with (2) A23 batterries. 1 year warranty.

CATEGORY:

Features

• Connects easily using alligator clips or RJ-11 / RJ-45 combo plug and has 120VAC line cross protection
• Adjustable Sensitivity / Volume Control with Visual Signal Strength Indicator
• For tracing security, thermostat, data, telephone,audio and other types of wiring
• Powered by (2) A23 Batteries (included) with 1 year warranty

Product Overview



Specifications

• Fox Jr Battery: 1x A23 (included)
• Fox Jr: Dimensions: 6" x 1" x 1"
• Fox Jr Weight: 7 Ounces
• Hound Jr Battery: 1x A23 (included)
• Hound Jr Dimensions: 6" x 1" x 1"
• Hound Jr Weight: 7 Ounces

Fox & Hound Jr

Compact Wire and Cable Tracing Kit with Carrying Case

The Fox & Hound Jr wire tracing kit consists of a versatile Fox Jr Tone Generator (Toner) and a compact Hound Jr Inductive Amplifier (Probe). The Fox & Hound Jr are designed to work in various industrial and residential applications.

• Quickly trace security, data, thermostat, telephone, and audio wiring
• Trace target wire through walls
• Locate target wire among other wires
• Pocket-sized with pocket clip; small and streamlined to get into tight places

• Overload Warning Beeper – alerts user to potential hazards
• Connects easily with alligator clips or RJ-11 / RJ-45 combo plug
• Distinctive Warble tone is adjustable over wide range
• 120VAC Line Cross Resistant

Fox Jr

The Fox Jr is a battery operated handheld multi-function Toner that generates a Warble tone, performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and provides overload protection up to 120 VAC.

• Adjustable Sensitivity/Volume Control
• Visual Signal Strength Indicator
• Contains Hi-Gain Hi-Impedance Amplifier
• Non-Conductive Probe Tip
• Detects Fox Jr. Signal from up to 12" away
• Earphone Jack
• Power Beeper Reminder

Hound Jr

The Hound Jr is a battery operated handheld lightweight Probe, with a thumb-wheel Sensitivity control and Signal Strength indicator LED.

	3399 Fox & Hound Premium	3388 Fox & Hound HotWire	3375 Fox & Hound Jr	CTX690	CTX590 ProTone	CTX30
Application	Traces various types of cable including electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, alarm cable and more	Traces wires from 0 ~ 250VAC, including 12, 24, 28, 120, 220, and 240VAC	Trace security, thermostat, data, telephone,audio and other types of wiring	Locate and trace cables on inactive or active networks, live or dead phone lines, as well as coaxial video cabling systems	Traces various types of cables including electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, alarm cable and more	Trace various types of unenergized cable including electrical wire, twisted pair, LAN, multi-conductor, telephone, alarm and more
Detect Trace Tones up to 12" Away	✓	✓	✓
Probe LEDs Light Up Dark Areas	✓	✓		✓	✓
Audible and Visual Notification	✓	✓	✓	✓	✓	✓
Built-in Earphone Jack	✓		✓	✓
Adjustble Sensitivity	✓	✓	✓		✓	✓
Connectivity	RJ11, RJ45 or Alligator Clips	Flat Blade, Pointed Probe or Alligator Clips	RJ11 or Alligator Clips	F-Type Connector, RJ11, RJ45 or Alligator Clips	RJ11, RJ45 or Alligator Clips	RJ11 or Alligator Clips

Specifications

Output Frequency 800kHz to 5kHz Frequency Adjustment Thumbwheel Output Voltage 6vpp square wave (open circuit) Tracer Tone Warble Max. AC/DC Live Voltage 120V Connections Alligator Clips and RJ11/RJ45 combo modular plug Lead Length 4" Battery 12V (A23) Dimensions 5.8 x 1.25 x 0.8" (147 x 31.8 x 20.3mm) Weight 1.6oz (45.4g) Hound Jr Probe Non-conductive, insulated Sensitivity Adjustable with thumbwheel (detects Fox Jr up to 12" away) Signal Strength Indicator Bright red dual LED visual signal strength indicator and speaker Earphone Jack Accepts 1/8" mono or stereo earphone plug (mutes speaker) Battery 12V (A23) Power On Reminder Hound Jr beeps and flashes periodically Dimensions 5.8 x 1.25 x 0.8" (147 x 31.8 x 20.3mm) Weight 1.7oz (45.4g)

Includes

• (2) A23 batterries
• Carry Case
