- The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, plastic duck bill, metal duck bill, headphones, and a sturdy weatherproof carry case. 3 year warranty.
- The Fox 2 is a battery operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC.
- The Hound 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover.
- This Wire tracing kit a lightweight easy to use kit, constructed with high quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. Inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 60 Hz and high-frequency noise. Tone generator has three tones for guiding tracer to wires.
- The toner can generate a signal up to 1000 feet
Features
Product Overview
Triplett Solutions for Every Contractor
The Triplett Fox & Hound Premium is a lightweight easy to use wire tracing kit, constructed with high quality materials. The portable design allows you to trace wires whenever needed.
Find non-energized wires in walls, ceilings, and floors. The inductive tracer with two probes indicates magnetic fields with audio and visual signals. A built-in filter helps suppress 60 Hz and high-frequency noise. Tone generator has three tones for guiding the tracer to wires.
The Triplett Fox & Hound wire and cable tracing kit consists of the versatile Fox 2 Tone Generator (Toner) and the high-performance Hound 3 Inductive Amplifier (Probe).
- Trace electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, and more
- Detect trace tones up to 12" away
- 3 methods of connectivity: RJ11, RJ45 or alligator clips

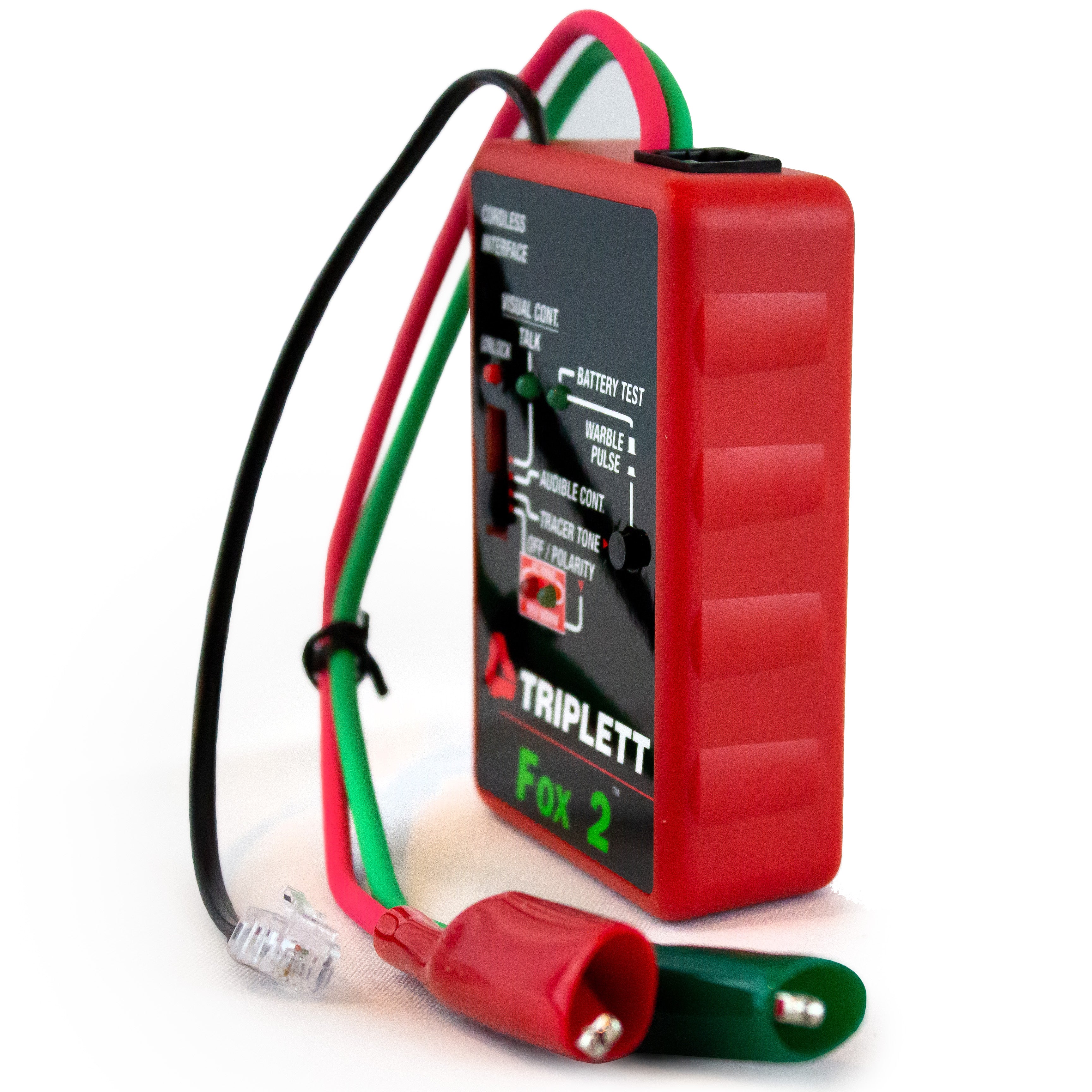

Fox 2 Tone Generator (Toner)
|
|
|
|
|---|---|---|---|
Overload ProtectionTest a variety of cables with specialized RJ-11, RJ-45, and Alligator clips adapters. With overload protection, the Fox 2 can tolerate momentary and accidental 120 VAC line crosses without damage. | Cordless Phone InterfaceSend a tracer tone to the base station of a cordless telephone and monitor the tone with the cordless handset. Red and Green LEDs light up to indicate normal and reversed polarity. They also light at the same time for visual ringer indication. Performs basic telephone line tests (loop mA, line polarity, and ringing voltage). | TrueTrace Cadence Shift and Selectable Tracer TonePositively identify cables or cable pairs with a momentary short (of non-live wire). The cadence of the tracer tone changes, confirming the ID. Choose between a high output warble or pulse tracer tone, useful if other toners are being used in the vicinity. | Tone/Battery LEDAn LED indicator visually confirms that the tracer tone is on and shows the battery status. A magnetic back allows you to stick the Fox 2 to steel surfaces. |
Hound 3 Inductive Amplifier (Probe)
|
|
|
|
|---|---|---|---|
Adjustable Sensitivity and Loudness ControlThe Hound 3 identifies Fox 2's tracer tone up to 12 inches away with a thumbwheel sensitivity control. Reduce and increase the loudness based on the surroundings (high acoustic noise, quiet office environments) for effective and unobtrusive testing. | Filter Out 60Hz NoiseAlthough the Fox 2 is not affected by 60Hz noise, the Hound 3 will pick it up and amplify it. A bypass filter is built in to suppress the humming and buzzing usually associated with 60Hz noise while improving sensitivity to the Fox 2 Toner. | Built-In Signal Strength Indicator and HeadlightA bright red LED signal strength indicator maintains sensitivity, even when an earphone is used. A built-in headlight allows you to illuminate dark areas and reduce fluorescent light noise interference with the press of a button. | Built-In Signal Strength Indicator and HeadlightThe Hound 3 features a rugged and moisture-resistant 1.5-inch Mylar cone speaker with a high strength alnico magnet. For quiet or noisy environments, the Hound 3 accepts earphones with a standard 1/8-inch (3.5 millimeter) mini phone plug in either mono or stereo. Earphones with shielded wires are recommended to reduce the possibility of feedback from the cable to the probe tip. |
Specifications
| Operating Frequency (RF) | 400kHz to 500kHz |
| Operating Frequency (AF) | 800Hz to 2400Hz |
| Output Voltage (RF) | adjustable 5vpp to 30vpp (open circuit) |
| Output Voltage (AF) | fixed 10vpp (open circuit) |
| Tracer Tone | Warble or Pulsed, High or Low Pitch |
| Max. AC/DC Live Voltage | 250V |
| Continuity Test | upto 5,000 ohms with audible beeper |
| AC Voltage Test | 30VAC to 250VAC |
| DC Voltage Test | Positive applied to red test lead 40VDC to 250VDC |
| Dimensions | 3.5 x 4.5 x 1.5" |
| Weight | 7 oz. |
| Hotwire Hound | |
| Operating Frequency (RF) | 400kHz to 500kHz |
| Signal Indicators | Speaker outputs Tracer signal and LED indicates signal strength |
| Earphone Jack | Accepts 1/8" mono or stereo earphone plug (mutes speaker) |
| Headlights | 2 High Brightness White LEDs |
| Speaker | 1.5" Mylar cone with Alnico magnet |
| Dimentions | 1-7/8" dia at speaker; 1-3/8" dia at body; 7.5" long |
| Weight | 9 oz. |
Includes
- Fox 2
- Hound 3
- Plastic Duck Bill
- Metal Duck Bill
- Headphones
- Weatherproof Carry Case
