7" Portable HD TFT LCD Monitor with 4K Resolution - Ideal for Security Camera Testing & Field Monitoring (HDCM 4K) | Perfect for CCTV Installation, Surveillance Setup & Outdoor Inspections

Product Description

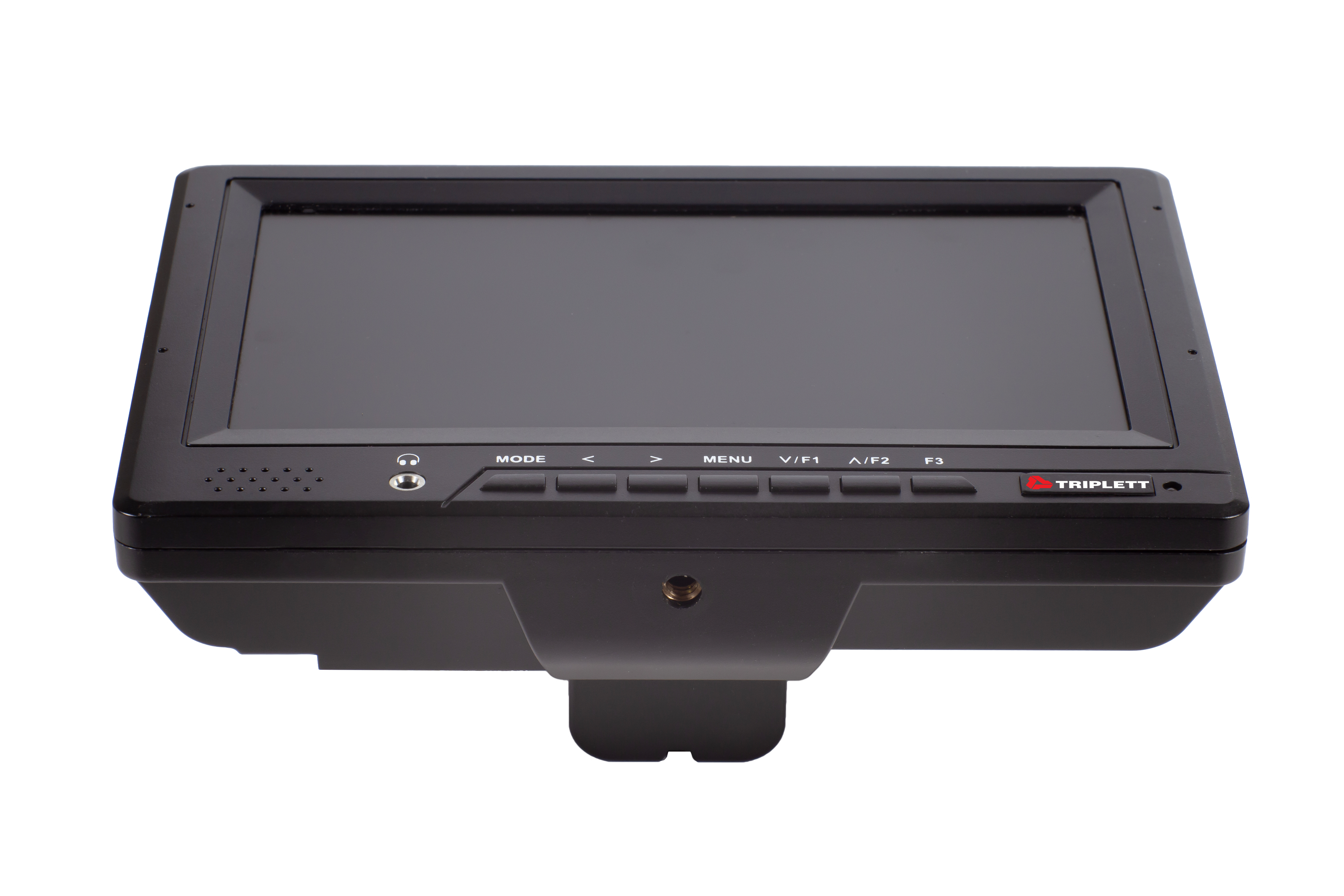

The Triplett HDCM-4K is a 7” HD TFT LCD monitor with 1920 x 1080P and 1.4 HDMI. It connects using HDMI, Composite BNC-In/BNC-Out, and Component BNC. AC powered or uses an externally mounted, easily swapped rechargeable battery.


DESCRIPTION

The Triplett HDCM-4K is a 7” HD TFT LCD monitor with 1920 x 1080P and 1.4 HDMI. It connects using HDMI, Composite BNC-In/BNC-Out, and Component BNC. AC powered or uses an externally mounted, easily swapped rechargeable battery. It can be used for temporary or permanent connection to any NVR, DVR, Cable/Satellite box, computer, or other video source that has an HDMI or BNC connection. Use with Security Cameras during setup, testing, and monitoring;  DVRs, Cable/Satellite TV boxes, and DVD Players; Computers and Laptops as a second monitor; DSLR Cameras as a second screen while broadcasting live events; Raspberry PI Projects, and much more. Versatile stand allows placement on top of desk or DVR/NVR, mounting to wall, or mounting to IT cabinet or server rack. Includes wall-, desk-, or rack-mountable stand, AC adapter, rechargeable battery and external charger. 1 year warranty.

CATEGORY:

Features

• 7” HD TFT LCD monitor with 1920 x 1080P and 1.4 HDMI

• Connects using HDMI, Composite BNC-In/BNC-Out, and Component BNC

• AC powered or uses an externally mounted, easily swapped rechargeable battery with external battery charger

• Compact and light weight

• Wall-, desk-, or rack-mountable

Product Overview

High Definition 4K Resolution The Triplett HDCM-4K is a 7" HD TFT LCD security test monitor with 1920 x 1080P and 1.4 HDMI. Perfect for use with security cameras during setup, testing, and monitoring.	HDMI, Composite BNC-In/BNC-Out, and Component BNC Use for temporary or permanent connection to any NVR, DVR, cable/satellite box, or other video source that has an HDMI or BNC connection. Use with computers and laptops as a second monitor, DSLR cameras as a second screen while broadcasting live events, Raspberry PI projects, and much more.	AC or Battery Power The Triplett HDCM-4K is AC powered for permanent setups or uses an externally mounted, easily swapped rechargeable battery with external battery charger for portable convenience.

Wall-, Desk-, or Rack-Mountable

Included stand allows versatile placement on top of a desk or DVR/NVR, mounted to a wall, or mounted to an IT cabinet or server rack.

Specifications

	HDCM-4K
Screen Size	7” TFT LCD
Backlight Lamp	LED Backlight
Resolution	800 xx 480 up to 1920 x 1080
Aspect Ratio	16:09
Brightness	450cd/m2
Contrast	500:01:00
Viewing Angle	70°/70° (L/R), 50°/70° (U/D)
Display Mode	480i/p, 576i/p, 720p (50/60Hz) PAL/NTSC
Software Functions	Canon 5D II Camera Mode, Center Marker, Screen Marker, Aspect Ratio, Color Mode, Underscan/Overscan
Function Keys	Left, Right, Menu, Up, Down, Mode, Power
Audio	1 BNC input; 3.5mm earphone jack; Built-in 1W speaker in front panel
Power	100 to 240VAC, rechargeable battery, or 12VDC (XLR Connector)
Dimensions/Weight	7.4 x 5.2 x 1.2” (188 x 130.7 x 31mm) / 1lb (0.45kg)

Includes

• Wall-, desk-, or rack-mountable stand,
• AC adapter
• Rechargeable battery
• External charger
