- Analog testing for up to 8MP cameras; Automatically recognizes the type of encoding: SD Analog, AHD 2.0, HD-CVI 3.0, HD-TVI 3.0
- RS485 port for testing the Pan-Tilt-Zoom (PTZ) and supports more than 30 PTZ protocols
- 12VDC/1A output
- Analog Video Generator and HD Video Generator (up to 1080P 30fps); Screen shot, video recording, and frame by frame or streaming playback
Features
Product Overview

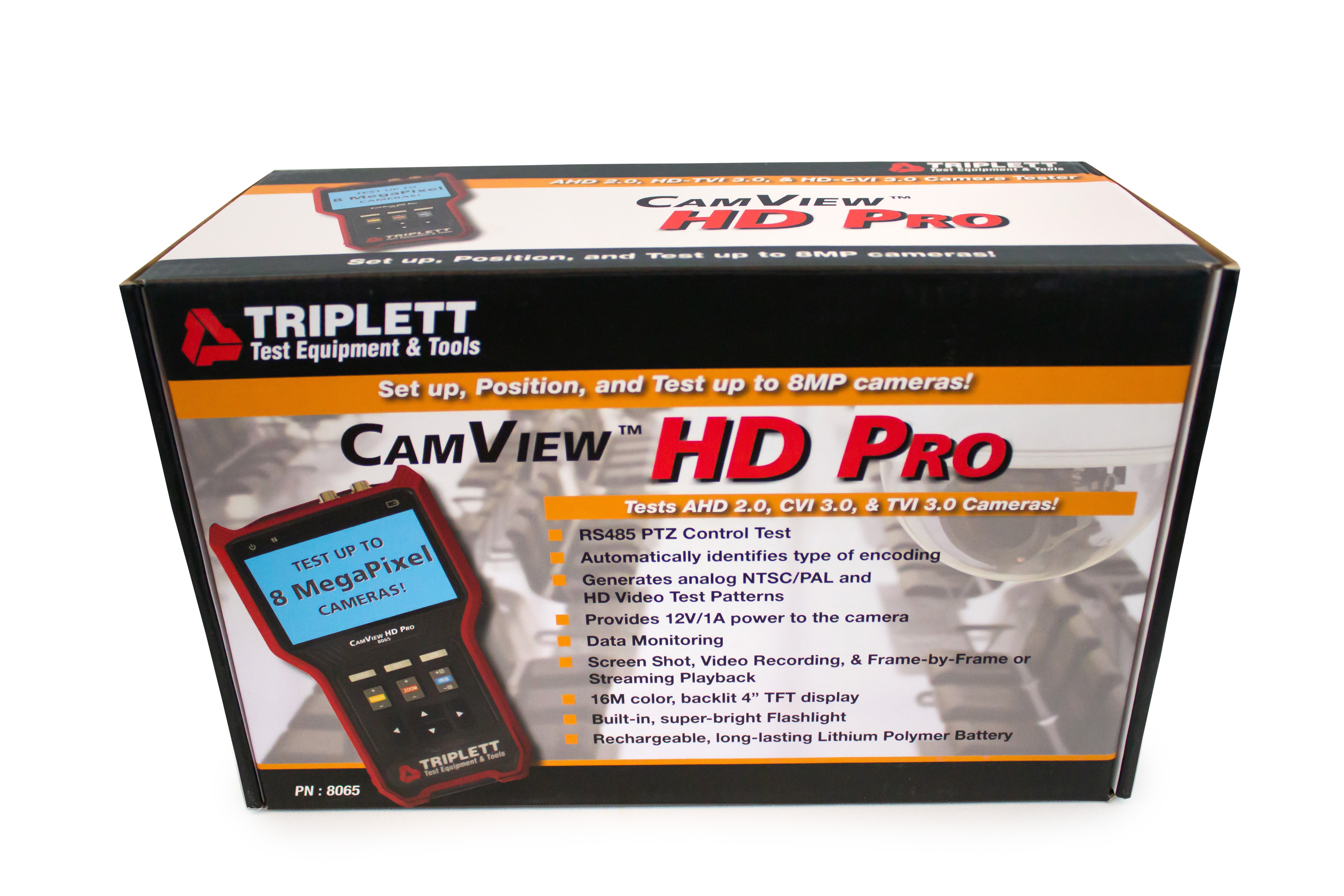

CamView HD Pro: 8065
Ruggedized High Definition Analog Camera Tester
The CamView HD Pro is designed to facilitate the installation and maintenance of surveillance video equipment. It can be used with Standard Definition analog NTSC/PAL, HD-TVI, HD-CVI, and AHD camera systems. The Tester has an RS485 port for testing the Pan-Tilt-Zoom (PTZ), and supports more than 30 PTZ protocols. It can also provide 12VDC (not to exceed 1A) to power the analog camera. The Tester also allows you to capture video (snapshots and video recording), play back video, generate video test patterns for monitor checking, and monitor the data flow between the analog camera and the DVR system. You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight.
Tests AHD 2.0, CVI 3.0, & TVI 3.0 Cameras!
The CamView HD Pro supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0. This Tester is powerful, portable, and designed with the technician in mind. It will help you perform installation and maintenance jobs quickly and efficiently.
Features
- Analog Testing for up to 8MP cameras, including NTSC/PAL, AHD 2.0, CVI 3.0, and TVI 3.0
- Automatically identifies type of encoding
- Generate Analog NTSC/PAL and HD Video Test Patterns
- Provides 12V/1A power to the camera
- Data Monitoring
- Screen Shot, Video Recording, & Frame-by-Frame or Streaming Playback
- 16M color, backlit 4” TFT display
- Built-in, super-bright Flashlight
| CamView IP Pro (8070) | CamView IP Pro+ (8071) | CamView IP Pro-D (8073) | CamView IP Pro-X (8075) | |||
|---|---|---|---|---|---|---|
| Display | 4" TFT | 4" IPS Touchscreen | 4" TFT | 4" TFT | 4" TFT | 7" TFT Touchscreen |
| SD Analog | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| AHD / CVI / TVI | AHD 2.0 / CVI 3.0 / TVI 3.0 | AHD 2.0 / CVI 3.0 / TVI 3.0 | AHD 2.0 | AHD 2.0 / TVI 2.0 | AHD 3.0 / CVI 3.0 / TVI 3.0 | AHD 3.0 / CVI 3.0 / TVI 3.0 |
| IP (ONVIF Only) | H.264 and H.265 | H.264 | H.264 | H.265 | H.264 and H.265 | |
| Record Snapshot and Video | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| DHCP Server | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 12VDC Output | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| POE Output | ✓ | ✓ | ✓ | ✓ | ✓ | |
| TDR Testing | Ethernet Only | Ethernet Only | Ethernet Only | Ethernet Only | ||
| Built-in DMM |
Specifications
Analog and HD Video Testing | |
Video Format | Auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0 |
Test Pattern | Generates NTSC/PAL, HD-CVI, HD-TVI, or AHD test patterns (720P/1080P) |
Signal Level | 1vpp |

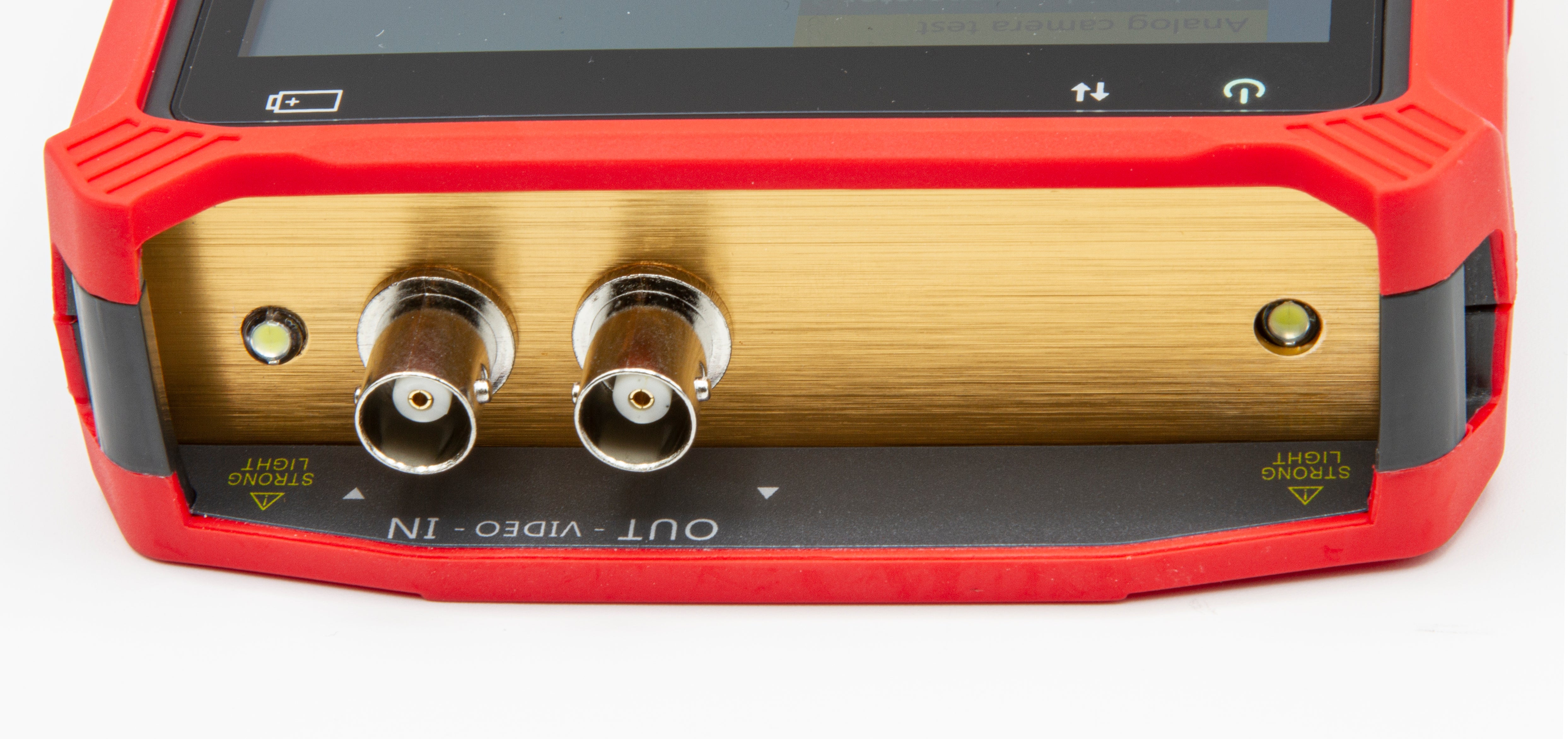

Input/Output | Video IN BNC, Video OUT BNC |
Digital Zoom | Supports 8-level portion view |
Capture | Take snap shot or record video |
POWER OUTPUT | |
Output | 12V/1A power output to camera. Connector is 4mm diameter; pin is 1.6mm diameter |
SYSTEM | |
Screen | 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight with adjustable brightness |
Operation | Power key, 13 control keys |
Language | User selectable -- English, French, Spanish, Russian, Chinese |
Auto Shut-off | Disable / 5~60 minutes |
Software | Supports online upgrade through USB using a Windows computer |
POWER | |
Charger | 12V/1A (5.5mm) power supply |
Battery | Dedicated battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 10.4Wh |
Battery runtime | Approximately 5 hours |
Power Saving | Auto power off; Real-time battery level indicator |
OTHER | |
Storage | 8GB flash built in; use micro USB port to connect external device |
LED Light | (2) 35lm LED lights |
Dimensions | 6.9 x 4.4 x 1.5" (175 x 113 x 37mm) |
Weight | 3.5lbs (1.6kg) |
