Product Overview
The Triplett Fox & Hound HotWire lets you trace live wires (up to 250V AC or 250V DC) in your home or on the job.
This high-performance unit utilizes a different frequency than the traditional Fox & Hound, allowing you to hear the tone clearly where other toners would get lost in the electrical noise of a live wire.

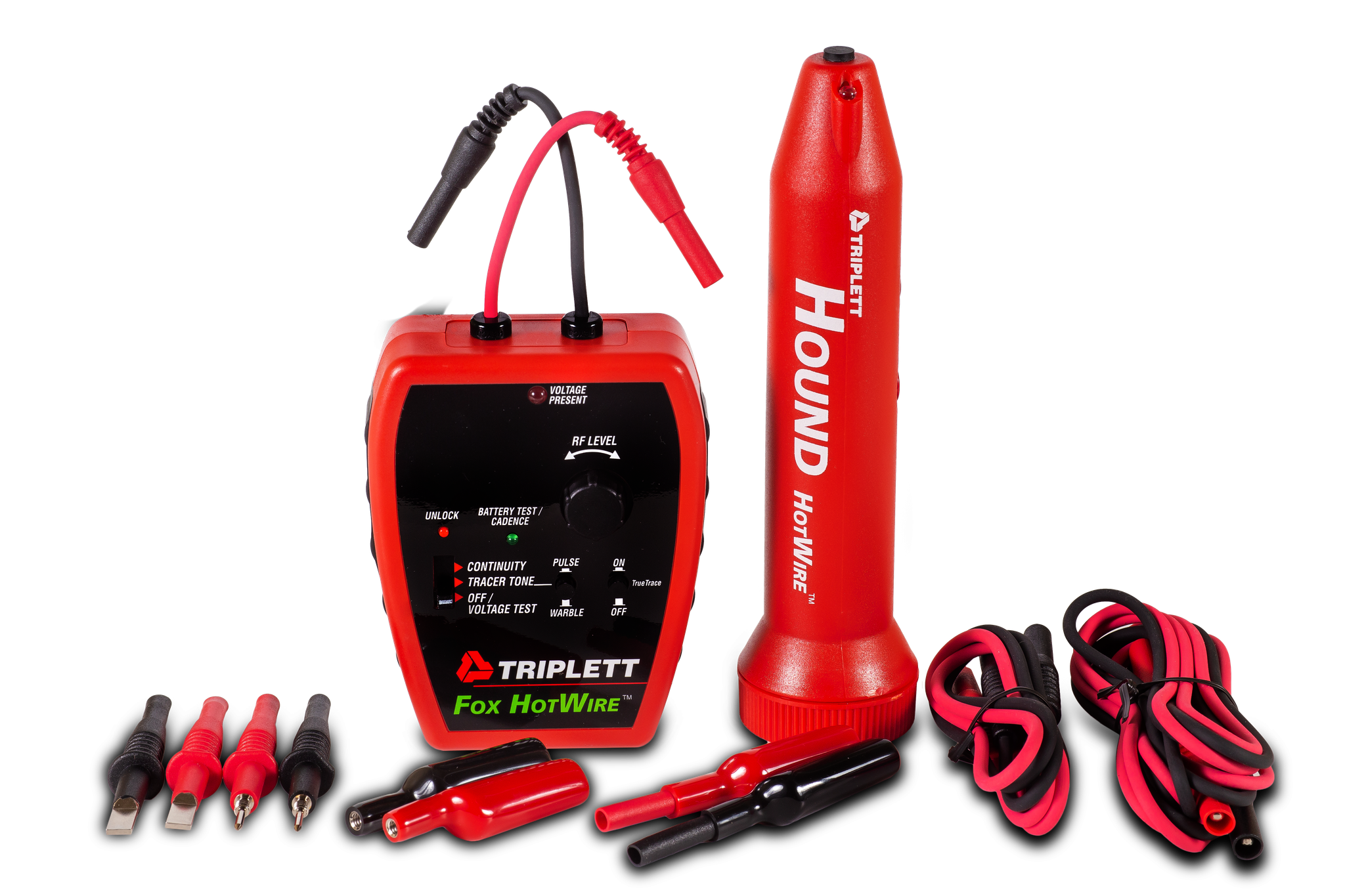

It includes the versatile Fox HotWire Tone Generator (Toner) and the high-performance Hound HotWire Inductive Amplifier (Probe).
- Trace Live 120/220VAC Power Lines (250VAC max)
- Locate wires through Drywall, Plaster, Wood, Cement, etc.
- Locate buried wires up to 6"
- Trace wires up to 1000 feet in length
- Rugged, moisture-resistant housings
Fox HotWire Tone Generator (Toner)
|
|
|
|
|---|---|---|---|
Fast ConnectionsThe Fox HotWire features a Voltage Present indicator so you can instantly and safely verify if there is power on the wire. Test a variety of cables using the supplied pointed, flat, or alligator clip probes. The unit is designed to test up to 250V AC or DC, so you can use it for normal household tracing. | Not Just for Live WiresThe Fox HotWire can also be used to tone cable TV/COAX cables, Ethernet cables, and any other copper cable. | TrueTrace Cadence Shift and Selectable Tracer TonePositively identify cables or cable pairs with a momentary short (of non-live wire). The cadence of the tracer's tone changes, confirming the ID. Choose between a high output warble or pulse tracer tone. | Tone/Battery LEDAn LED indicator visually confirms that the tracer tone is on and shows the battery's status. A magnetic back allows you to mount the Fox HotWire to steel surfaces. |
Hound HotWire Inductive Amplifier (Probe)
|
|
|
|---|---|---|
Filter Removes Electrical InterferenceThe tone from other toners gets "lost" in the noise of electrical interference. The Hound HotWire includes an advanced filtering system to ensure you can still trace the wire even if the wire is still live. You can also filter out the noise produced by interference from fluorescent lights with the press of a button. | Built-In Signal Strength Indicator and HeadlightThe Hound HotWire identifies the Fox's tracer tone up to 3 feet away (6 inches away if cable is buried) and features both audible and visual signal strength indicators. A bright LED gives you a visual indication when you are closest to the wire, even when an earphone is used. Built-in LED headlights allow you to illuminate dark areas. | Adjustable Sensitivity and Volume ControlAdjustable sensitivity allows you to trace the wire through walls all the way to the specific circuit on the circuit breaker. It also includes an earphone jack so you can trace wires without disturbing anyone. (Earphones with shielded wires are recommended to reduce the possibility of feedback from the cable to the probe tip.) |
Specifications
| Hotwire Fox | |
| Operating Frequency (RF) | 400kHz to 500kHz |
| Operating Frequency (AF) | 800Hz to 2400Hz |
| Output Voltage (RF) | adjustable 5vpp to 30vpp (open circuit) |
| Output Voltage (AF) | fixed 10vpp (open circuit) |
| Tracer Tone | Warble or Pulsed, High or Low Pitch |
| Max. AC/DC Live Voltage | 250V |
| Continuity Test | upto 5,000 ohms with audible beeper |
| AC Voltage Test | 30VAC to 250VAC |
| DC Voltage Test | Positive applied to red test lead 40VDC to 250VDC |
| Dimensions | 3.5 x 4.5 x 1.5" |
| Weight | 7 oz. |
| Hotwire Hound | |
| Operating Frequency (RF) | 400kHz to 500kHz |
| Signal Indicators | Speaker outputs Tracer signal and LED indicates signal strength |
| Earphone Jack | Accepts 1/8" mono or stereo earphone plug (mutes speaker) |
| Headlights | 2 High Brightness White LEDs |
| Speaker | 1.5" Mylar cone with Alnico magnet |
| Dimentions | 1-7/8" dia at speaker; 1-3/8" dia at body; 7.5" long |
| Weight | 9 oz. |
Includes
- Test leads (24" and 60")
- Flat Blades
- Pointed Probes
- Alligator Clips
- Hard Carrying Case
Downloads
FAQs
- Q. Can this be used for 12V or 24V systems?
A. The 3388 can be used on any system up to 250V. - Q. Is it possible to use this device for tracing wires in automobiles?
A.Unfortunately, no. Though the 3388 model can be applied to any system up to 250V, it's not suitable for automotive applications, the cable bundles found in automobiles result in a bleed-out from the cable being tested, causing the tone to spread over all cables in the bundle.
